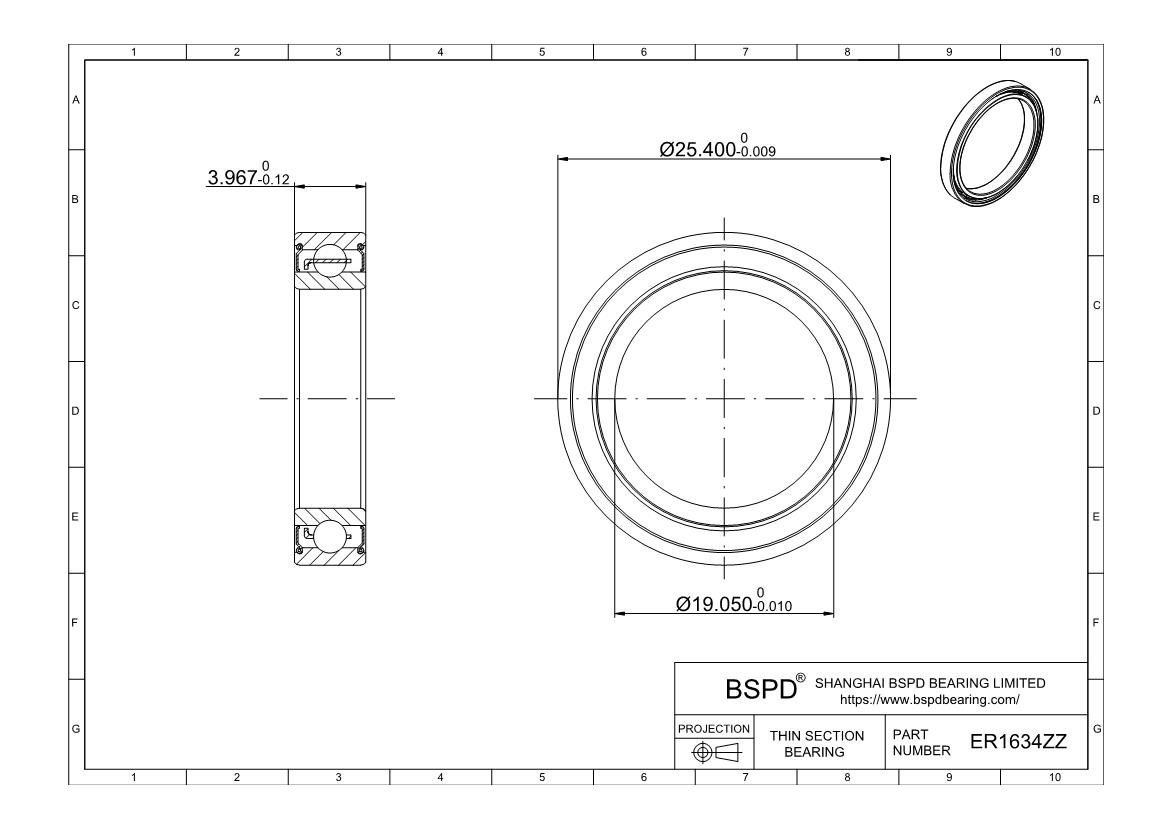

ER1634 ZZ
ET & ER Series
Dimensions: Bore (Inner) Diameter: 19.050 mm； Outer Diameter: 25.400 mm； Width (Thickness): 3.967 mm;
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Ball |
| For Load Direction | Radial |
| Construction | Single Row |
| Seal Type | Shielded |
| Part Number | ER1634 ZZ |
| For Shaft Diameter | 19.050mm | 0.75" |
| Bore Dia (d) | 19.050mm | 0.75" |
| Bore Dia Tolerance | -0.01mm to 0 |
| For Housing ID | 25.400mm | 1" |
| Outer Dia (D) | 25.400mm | 1" |
| Outer Dia Tolerance | -0.009mm to 0 |
| Width (B) | 3.967mm | 0.1562" |
| Width Tolerance | -0.120mm to 0 |
| Ring Material | 52100 Chrome steel |
| Ball Material | 52100 Chrome steel |
| Cage Material | 300 Series Stainless Steel |
| Dynamic Load Rating (Cr) (Newtons) | 1010 |
| Static Load Rating (Cor) (Newtons) | 691 |
| Max Speed (Grease) (X1000 RPM) | 8.5 |
| Max Speed (Oil) (X1000 RPM) 2 | 10 |
| Lubrication | Required |
| Shaft Mount Type | Press Fit |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | ABEC-1 |
| Radial Clearance Trade No. | C0 |
| Radial Clearance | 0.006mm to 0.020mm |
| RoHS | Compliant |
| Weight (grams) | 4.56 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Thin Section Bearings ER1634 ZZ ? ET & ER Series Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
