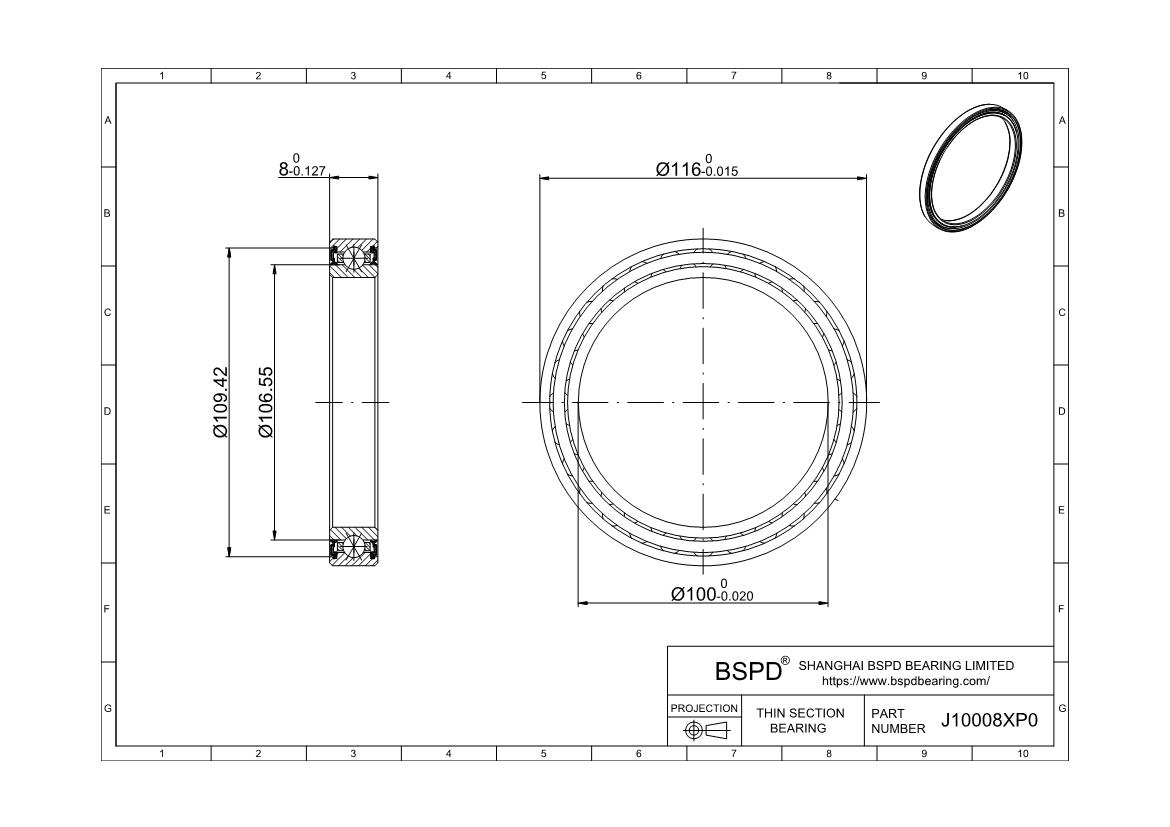

J10008XP0 RealiSlim MM Thin Section Metric Bearings
Dimensions: Bore (Inner) Diameter: 100 mm; Outer Diameter: 116 mm; Width (Thickness): 8 mm;

J10008XP0
REQUEST FOR QUOTE
* *
Send
Product Attributes
Bearing Type Ball
For Load Direction Four Point
Construction Single Row
Seal Type Sealed
Cross Section 8 mm
Part Number J10008XP0
For Shaft Diameter 100 mm
Bore Dia (d) 100 mm
Bore Dia Tolerance -0.02mm to 0
For Housing ID 116 mm
Outer Dia (D) 116 mm
Outer Dia Tolerance -0.015mm to 0
Width (B) 8 mm
Width Tolerance +.000 –.127mm
Land dia.L1 106.55
Land dia.L2 109.42
Ring Material 52100 Chrome steel
Ball Material 52100 Chrome steel
Cage Material Brass
Dynamic (N) Radial 6570
Thrust 10052
Moment 266
Static (N) Radial 10395
Thrust 25997
Moment 562
Lubrication Lubricated
Shaft Mount Type Press Fit
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance 0.0000 – 0.0005"
RoHS Compliant
Weight (kg) 0.14
