J17008XP0 RealiSlim MM Thin Section Metric Bearings

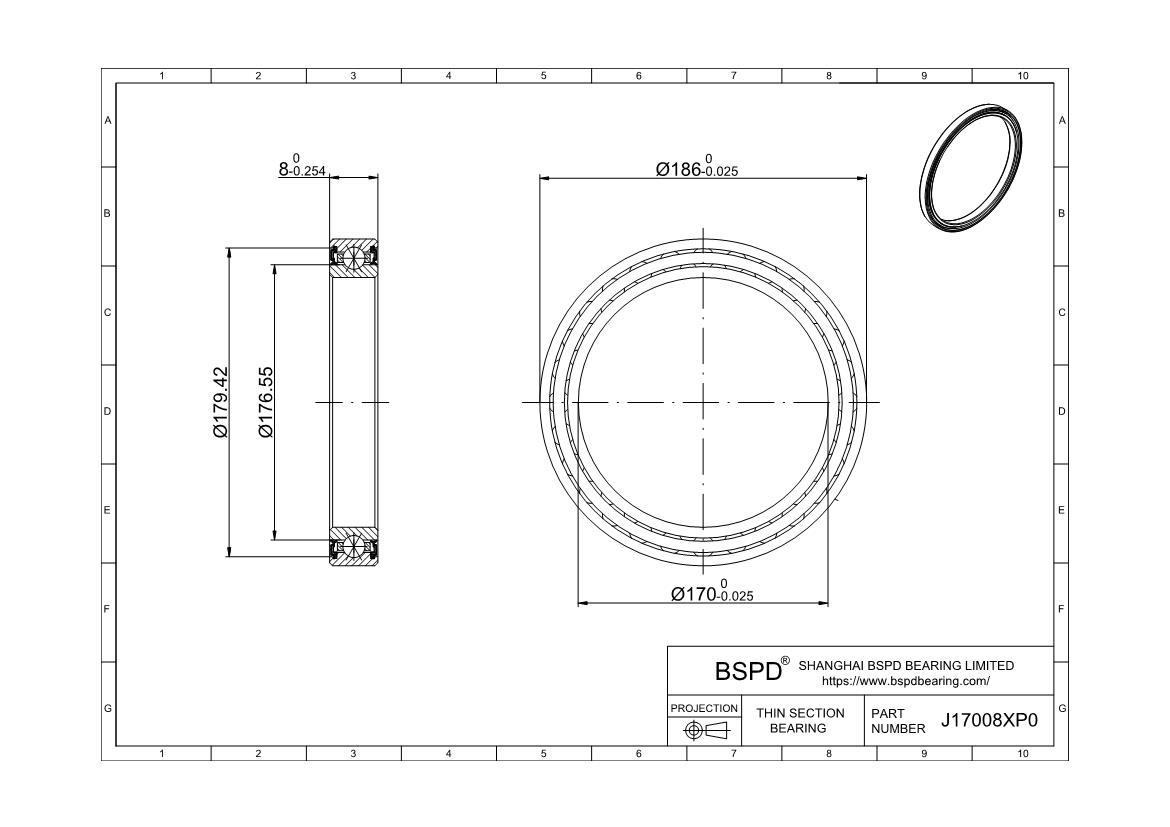

Dimensions: Bore (Inner) Diameter: 170 mm； Outer Diameter: 186 mm； Width (Thickness): 8 mm;

REQUEST FOR QUOTE

Product Attributes

Bearing Type		Ball
For Load Direction		Four Point
Construction		Single Row
Seal Type		Sealed
Cross Section		8 mm
Part Number		J17008XP0
For Shaft Diameter		170 mm
Bore Dia (d)		170 mm
Bore Dia Tolerance		-0.025mm to 0
For Housing ID		186 mm
Outer Dia (D)		186 mm
Outer Dia Tolerance		-0.025mm to 0
Width (B)		8 mm
Width Tolerance		+.000 –.254mm
Land dia.L1		176.55
Land dia.L2		179.42
Ring Material		52100 Chrome steel
Ball Material		52100 Chrome steel
Cage Material		Brass
Dynamic (N)	Radial	8924
	Thrust	14131
	Moment	596
Static (N)	Radial	17328
	Thrust	43326
	Moment	1543
Lubrication		Lubricated
Shaft Mount Type		Press Fit
Temperature Range		-30° to 110 °C
ABEC Rating		ABEC-1
Radial Clearance		0.0000 – 0.0005"
RoHS		Compliant
Weight (kg)		0.20

Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
