K07008CP0 RealiSlim MM Thin Section Metric Bearings

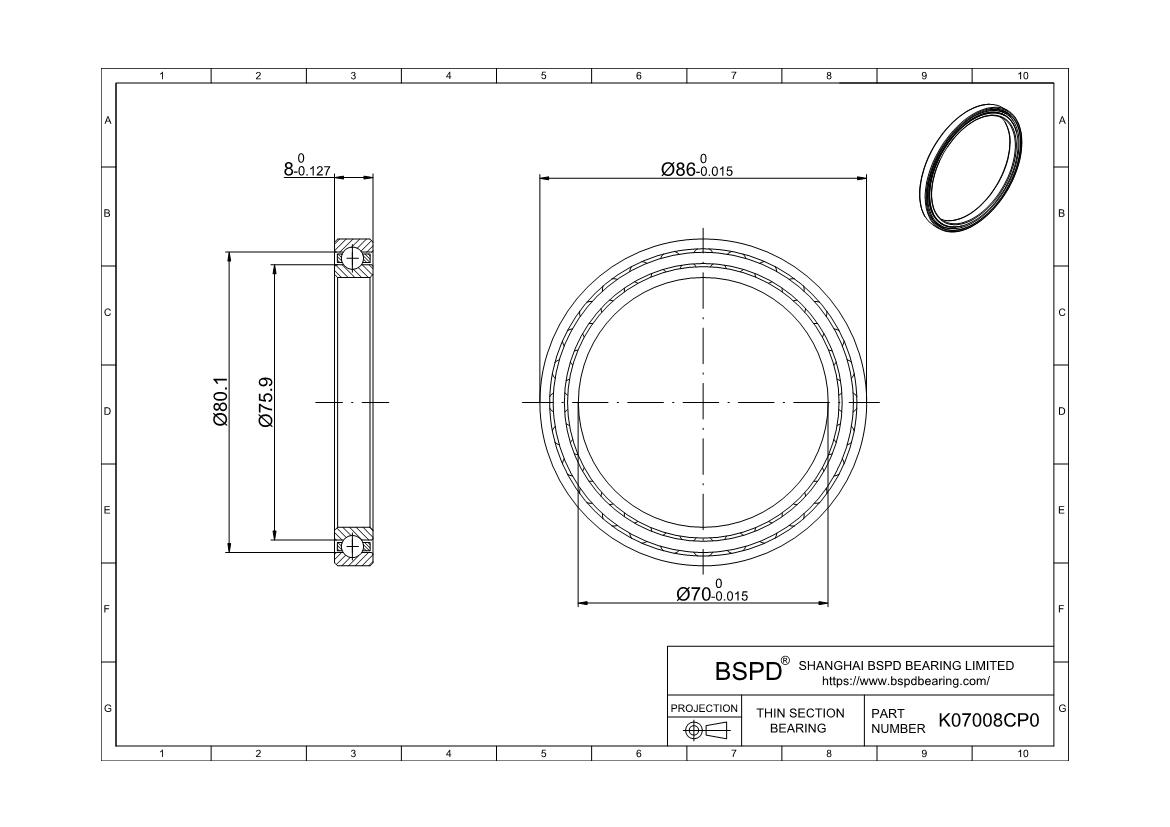

Dimensions: Bore (Inner) Diameter: 70 mm; Outer Diameter: 86 mm; Width (Thickness): 8 mm;

K07008CP0
REQUEST FOR QUOTE
* *
Send
Product Attributes
Bearing Type Ball
For Load Direction Radial
Construction Single Row
Seal Type Open
Cross Section 8 mm
Part Number K07008CP0
For Shaft Diameter 70 mm
Bore Dia (d) 70 mm
Bore Dia Tolerance -0.015mm to 0
For Housing ID 86 mm
Outer Dia (D) 86 mm
Outer Dia Tolerance -0.015mm to 0
Width (B) 8 mm
Width Tolerance +.000 –.127mm
Land dia.L1 75.9
Land dia.L2 80.1
Ring Material 52100 Chrome steel
Ball Material 52100 Chrome steel
Cage Material Brass
Dynamic radial (N) 4089
Static radial (N) 7433
Lubrication Lubricated
Shaft Mount Type Press Fit
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance 0.0000 – 0.0005"
RoHS Compliant
Weight (kg) 0.10
K07008CP0
