K08020XP0 RealiSlim MM Thin Section Metric Bearings

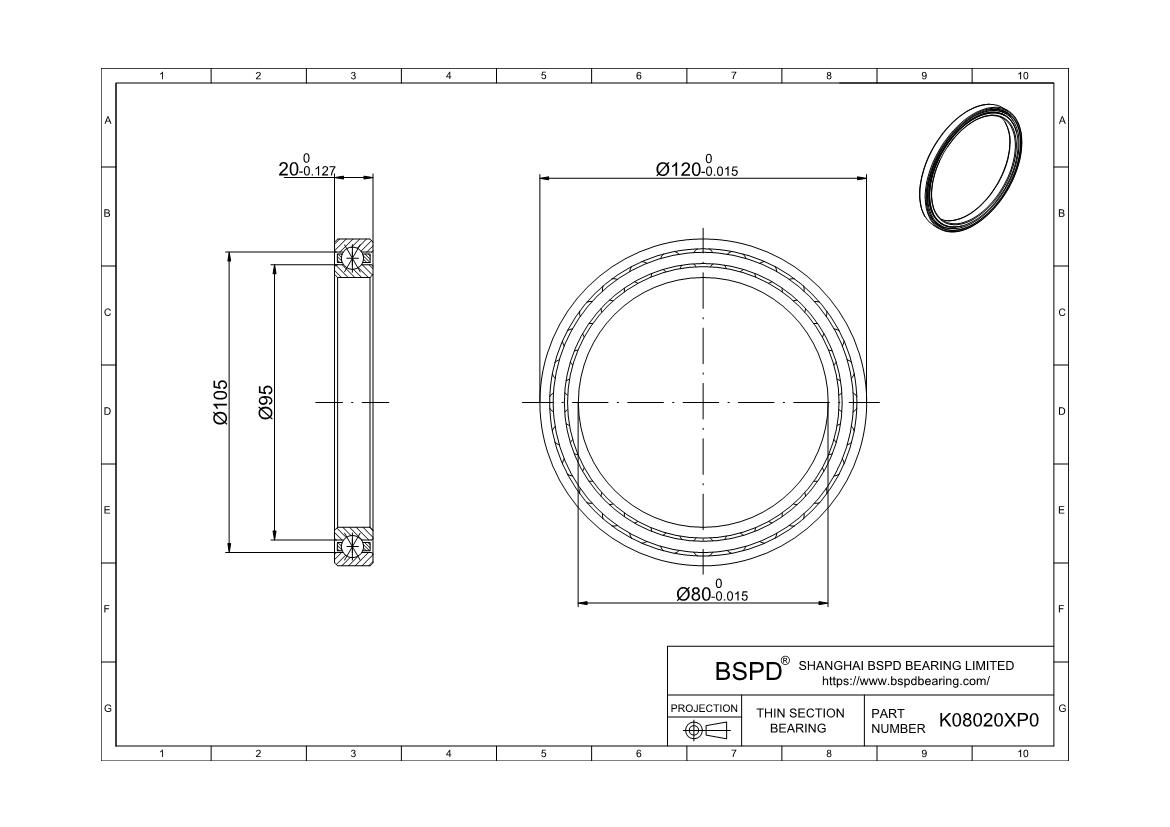

Dimensions: Bore (Inner) Diameter: 80 mm; Outer Diameter: 120 mm; Width (Thickness): 20 mm;

K08020XP0
REQUEST FOR QUOTE
* *
Send
Product Attributes
Bearing Type Ball
For Load Direction Four Point
Construction Single Row
Seal Type Open
Cross Section 20 mm
Part Number K08020XP0
For Shaft Diameter 80 mm
Bore Dia (d) 80 mm
Bore Dia Tolerance -0.015mm to 0
For Housing ID 120 mm
Outer Dia (D) 120 mm
Outer Dia Tolerance -0.015mm to 0
Width (B) 20 mm
Width Tolerance +.000 –.127mm
Land dia.L1 95
Land dia.L2 105
Ring Material 52100 Chrome steel
Ball Material 52100 Chrome steel
Cage Material Brass
Dynamic (N) Radial 20702
Thrust 29155
Moment 777
Static (N) Radial 21388
Thrust 53485
Moment 1070
Lubrication Lubricated
Shaft Mount Type Press Fit
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance 0.0000 – 0.0005"
RoHS Compliant
Weight (kg) 0.73
K08020XP0
