K34020AR0 RealiSlim MM Thin Section Metric Bearings

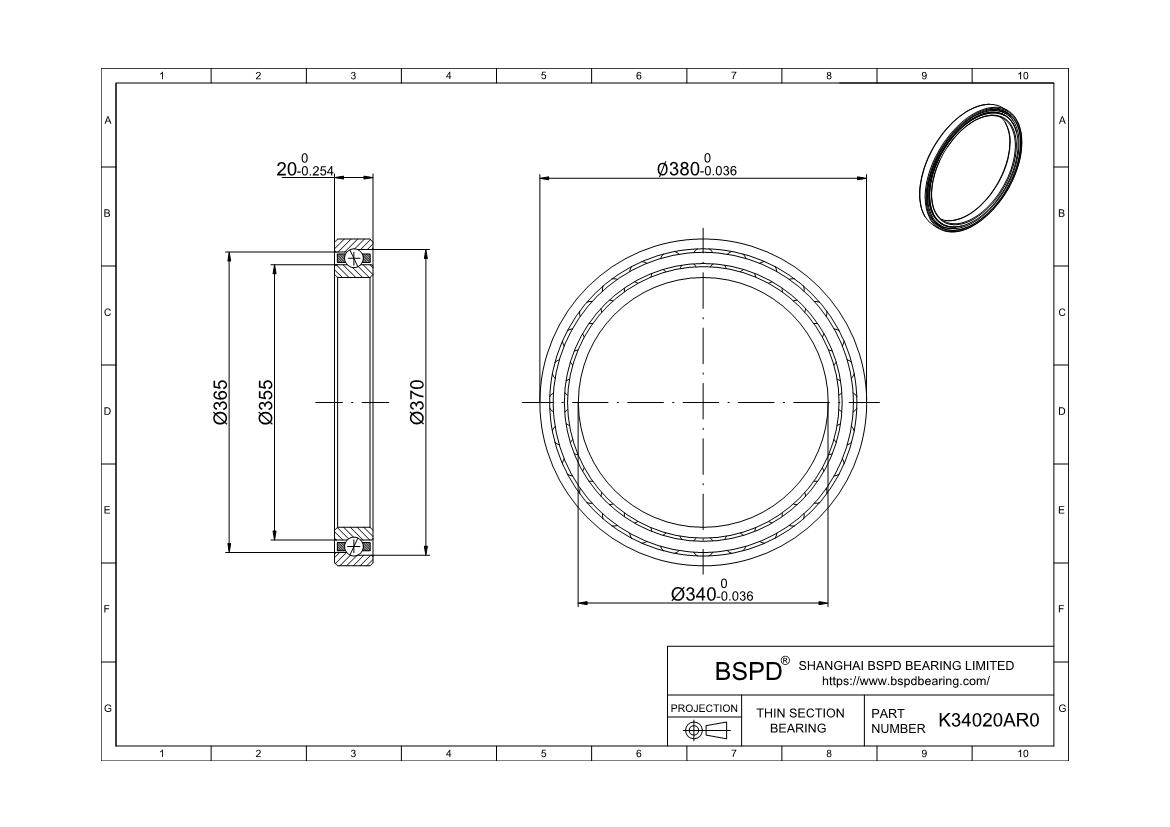

Dimensions: Bore (Inner) Diameter: 340 mm; Outer Diameter: 380 mm; Width (Thickness): 20 mm;

K34020AR0
REQUEST FOR QUOTE
* *
Send
Product Attributes
Bearing Type Ball
For Load Direction Angular
Construction Single Row
Contact Angle 30°
Seal Type Open
Cross Section 20 mm
Part Number K34020AR0
For Shaft Diameter 340 mm
Bore Dia (d) 340 mm
Bore Dia Tolerance -0.036mm to 0
For Housing ID 380 mm
Outer Dia (D) 380 mm
Outer Dia Tolerance -0.036mm to 0
Width (B) 20 mm
Width Tolerance +.000 –.254mm
Land dia.L1 355
Land dia.L2 365
C'Bore dia.L3 370
Ring Material 52100 Chrome steel
Ball Material 52100 Chrome steel
Cage Material Brass
Dynamic radial (N) 34872
Static (N) Thrust 87505
Radial 96341
Thrust 278117
Lubrication Lubricated
Shaft Mount Type Press Fit
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance 0.0000 – 0.0005"
RoHS Compliant
Weight (kg) 2.51
K34020AR0
