KC065AR0 Inch Size RealiSlim Open Bearings

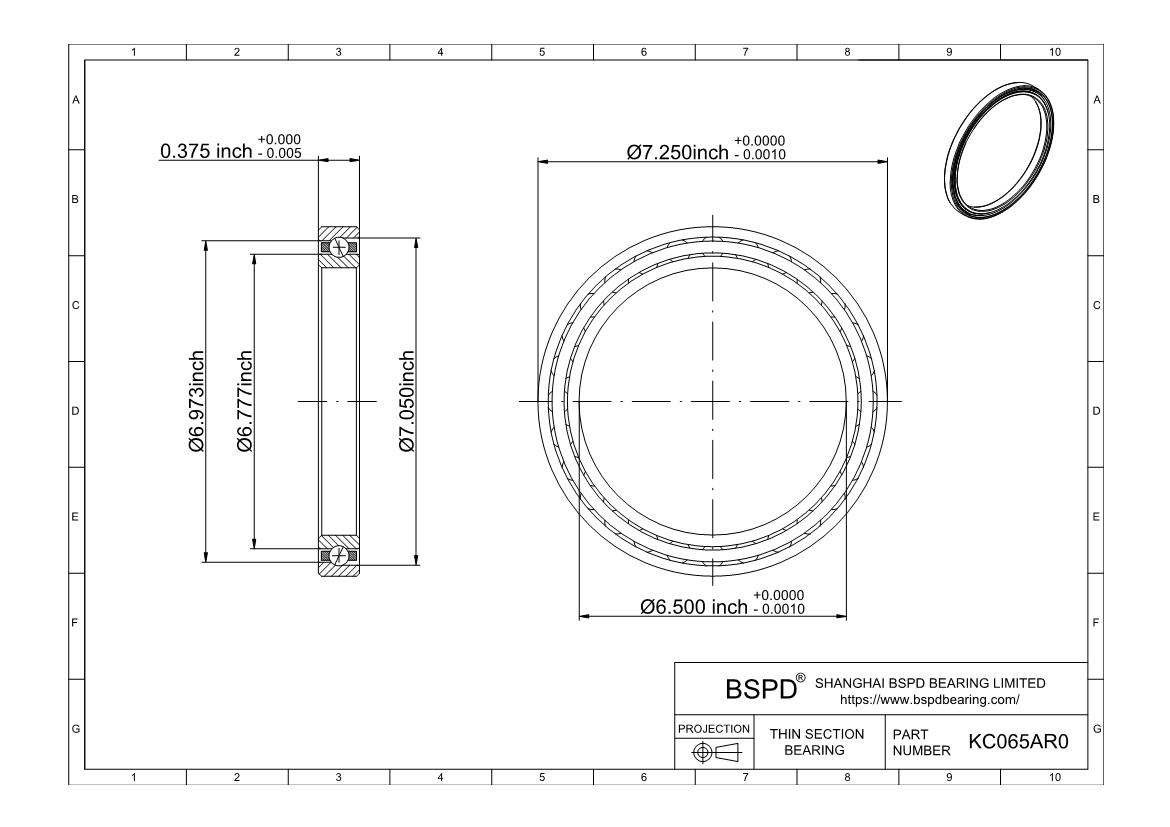

Dimensions: Bore (Inner) Diameter: 6.500"; Outer Diameter: 7.250"; Width (Thickness): 0.375";

KC065AR0
REQUEST FOR QUOTE
* *
Send
Product Attributes
Bearing Type Ball
For Load Direction Angular
Construction Single Row
Contact Angle 30°
Seal Type Open
Cross Section 3/8" x 3/8"
Part Number KC065AR0
For Shaft Diameter 6.500"
Bore Dia (d) 6.500"
Bore Dia Tolerance -0.0010"– 0"
For Housing ID 7.250"
Outer Dia (D) 7.250"
Outer Dia Tolerance -0.0010"– 0"
Width (B) 0.375"
Width Tolerance +.000 –.005"
Land dia.L1 6.777"
Land dia.L2 6.973"
C'Bore dia.L3 7.050"
Ring Material 52100 Chrome steel
Ball Material 52100 Chrome steel
Cage Material Brass
Dynamic(lbs) Radial 1519
Thrust 3770
Static (lbs) Radial 4060
Thrust 11720
Lubrication Lubricated
Shaft Mount Type Press Fit
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance 0.0000 – 0.0005"
RoHS Compliant
Weight (lbs) 0.680
