KG160XP0 Inch Size RealiSlim Open Bearings

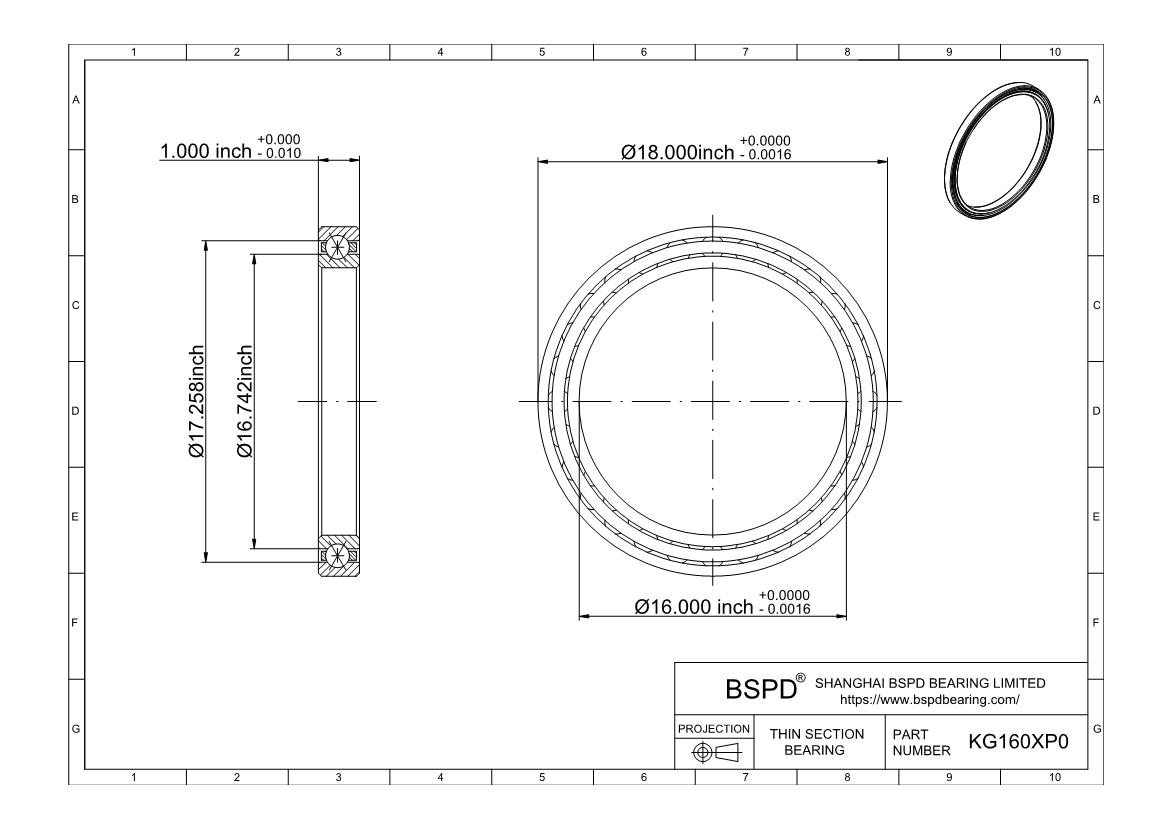

Dimensions: Bore (Inner) Diameter: 16.000"; Outer Diameter: 18.000"; Width (Thickness): 1?;

KG160XP0
REQUEST FOR QUOTE
* *
Send
Product Attributes
Bearing Type Ball
For Load Direction Four Point
Construction Single Row
Seal Type Open
Cross Section 1" x 1"
Part Number KG160XP0
For Shaft Diameter 16.000"
Bore Dia (d) 16.000"
Bore Dia Tolerance -0.0016"– 0"
For Housing ID 18.000"
Outer Dia (D) 18.000"
Outer Dia Tolerance -0.0016"– 0"
Width (B) 1"
Width Tolerance +.000 –.010"
Land dia.L1 16.742"
Land dia.L2 17.258"
Ring Material 52100 Chrome steel
Ball Material 52100 Chrome steel
Cage Material Brass
Dynamic (lbs) Radial 15,425
Thrust 25,450
Moment 98,373
Static (lbs) Radial 27,910
Thrust 69,770
Moment 237,200
Lubrication Lubricated
Shaft Mount Type Press Fit
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance 0.0000 – 0.0005"
RoHS Compliant
Weight (lbs) 12.300
KG160XP0
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
