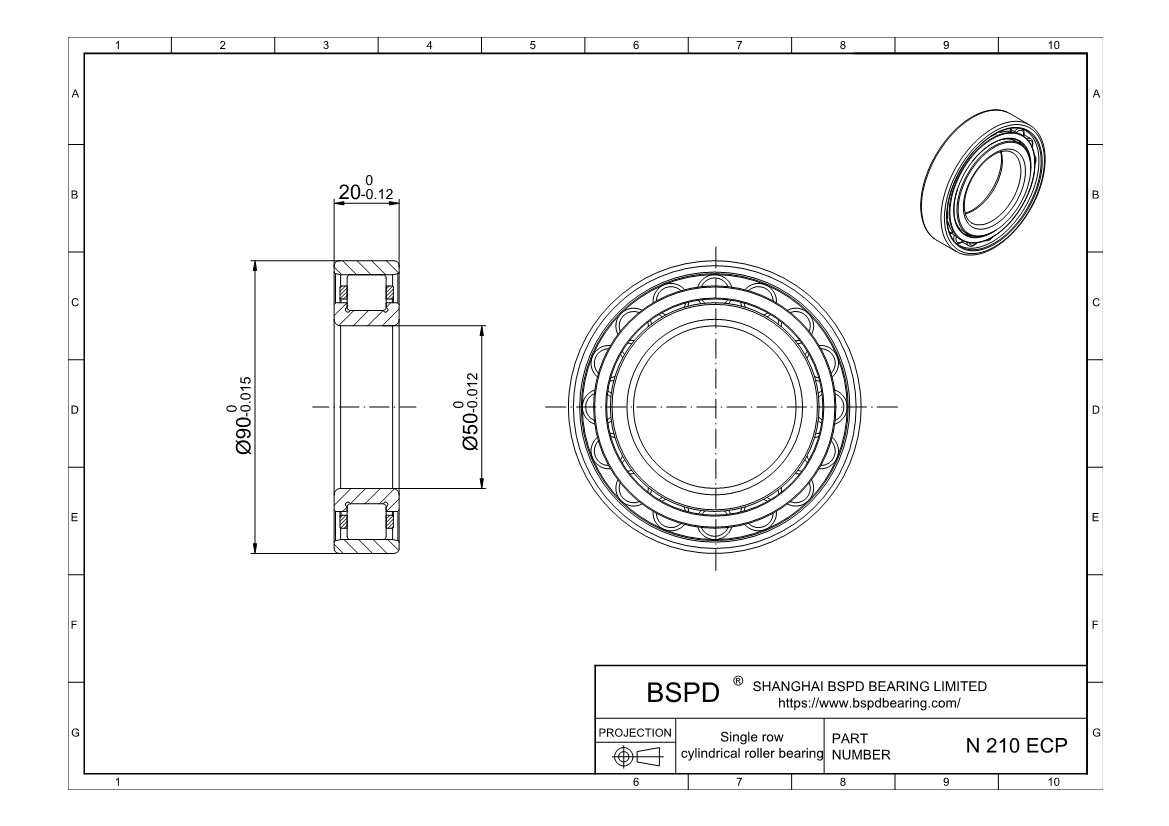

N 210 ECP Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 50 mm； Outer Diameter: 90 mm； Width (Thickness): 20 mm;

REQUEST FOR QUOTE

Product Attributes

Product Number	N 210 ECP
Bore diameter	50 mm
Outside diameter	90 mm
Width	20 mm
Basic dynamic load rating	73.5 kN
Basic static load rating	69.5 kN
Fatigue load limit	8.8 kN
Reference speed	8500 r/min
Limiting speed	9000 r/min
Mass	0.48 kg
Shoulder diameter of inner ring	64 mm
Shoulder diameter of outer ring	–
Raceway diameter	81.5 mm

Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
