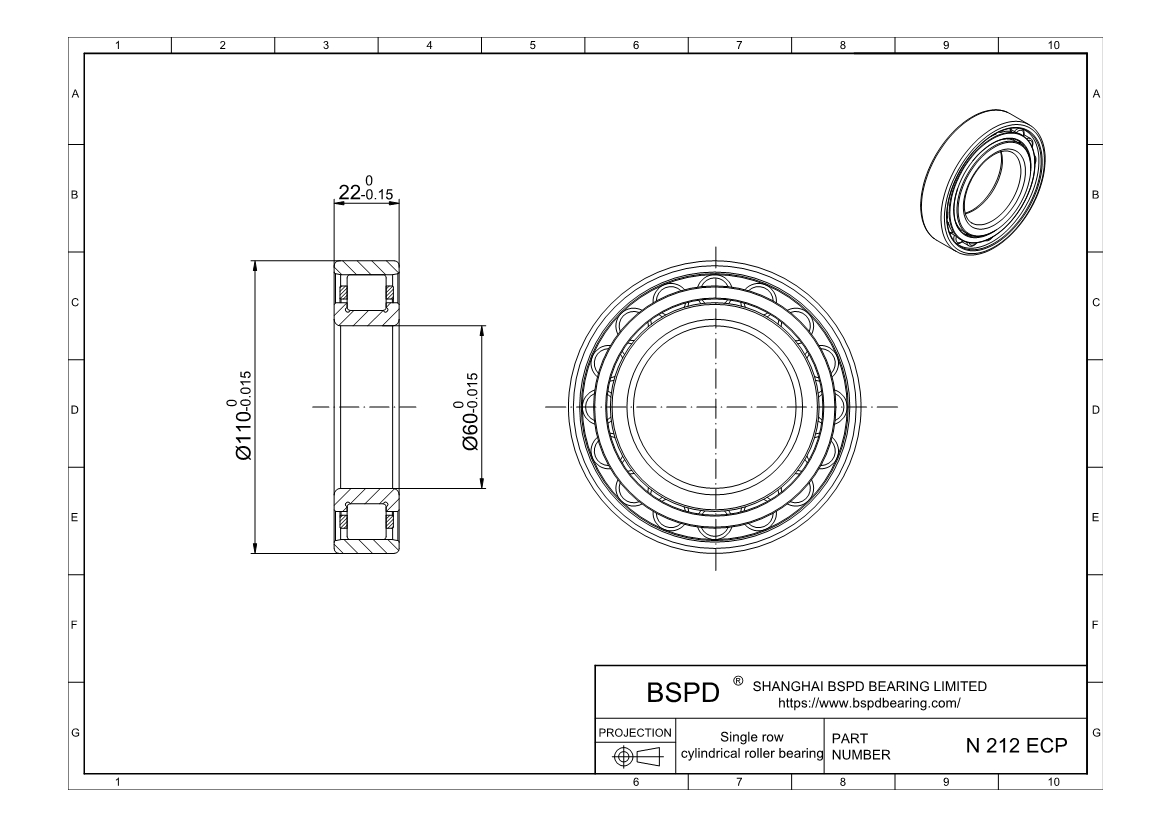

N 212 ECP Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 60 mm; Outer Diameter: 110 mm; Width (Thickness): 22 mm;

N 212 ECP
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product NumberN 212 ECP
Bore diameter60 mm
Outside diameter110 mm
Width22 mm
Basic dynamic load rating108 kN
Basic static load rating102 kN
Fatigue load limit13.4 kN
Reference speed6700 r/min
Limiting speed7500 r/min
Mass0.79 kg
Shoulder diameter of inner ring77.5 mm
Shoulder diameter of outer ring
Raceway diameter100 mm
N 212 ECP
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing N 212 ECP ? Single row cylindrical roller bearing Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation
  • Fast Delivery     √
  • Best Quality       √
  • Good Price        √
