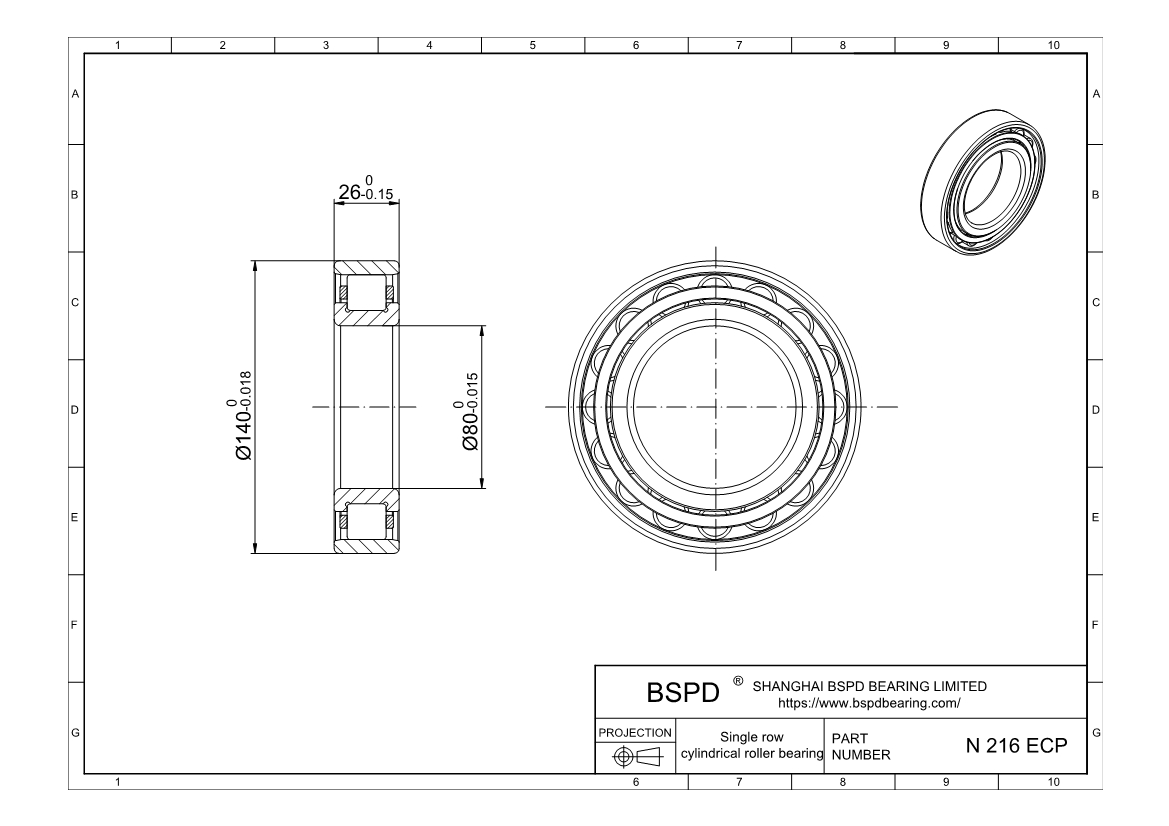

N 216 ECP Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 80 mm； Outer Diameter: 140 mm； Width (Thickness): 26 mm;

REQUEST FOR QUOTE

Product Attributes

Product Number	N 216 ECP
Bore diameter	80 mm
Outside diameter	140 mm
Width	26 mm
Basic dynamic load rating	160 kN
Basic static load rating	166 kN
Fatigue load limit	21.2 kN
Reference speed	5300 r/min
Limiting speed	5600 r/min
Mass	1.55 kg
Shoulder diameter of inner ring	101 mm
Shoulder diameter of outer ring	–
Raceway diameter	127.3 mm

Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings

What are the types of cylindrical roller bearing N 216 ECP ? Single row cylindrical roller bearing Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation

Fast Delivery √
Best Quality √
Good Price √
