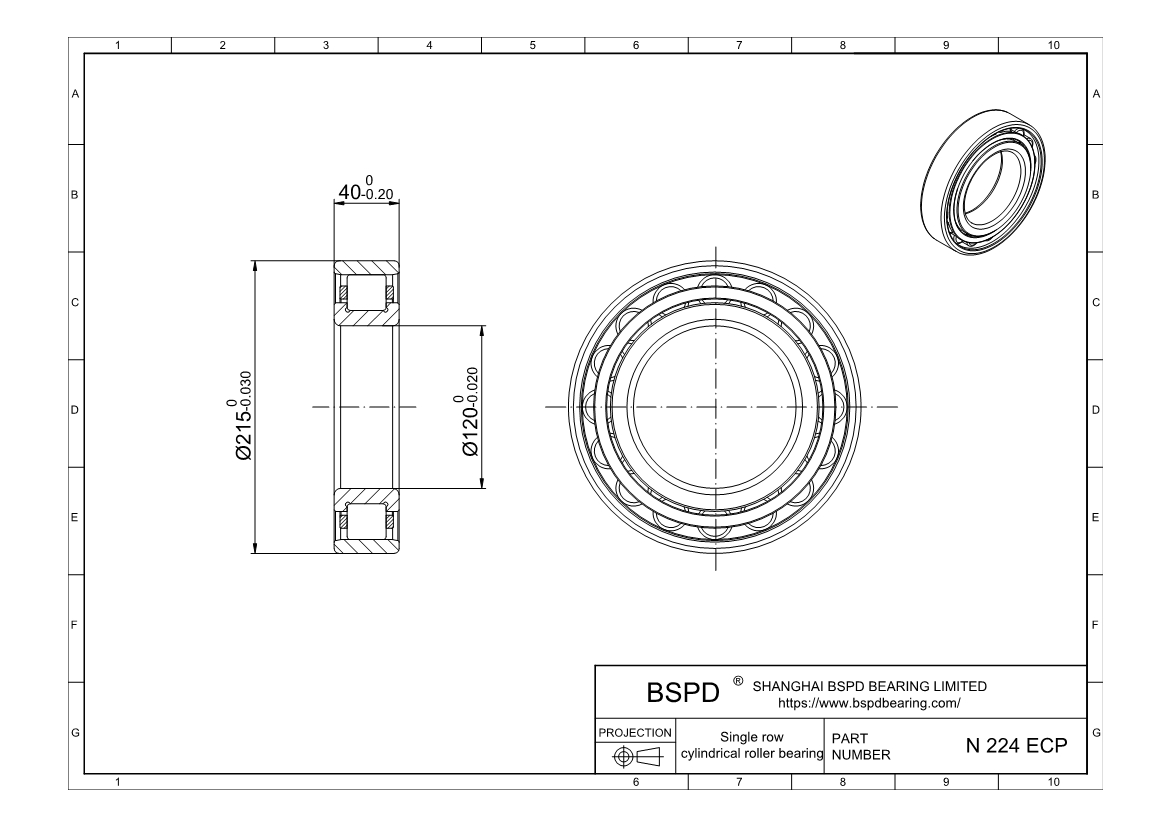

N 224 ECP
Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 120 mm； Outer Diameter: 215 mm； Width (Thickness): 40 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | N 224 ECP |
| Bore diameter | 120 mm |
| Outside diameter | 215 mm |
| Width | 40 mm |
| Basic dynamic load rating | 390 kN |
| Basic static load rating | 430 kN |
| Fatigue load limit | 49 kN |
| Reference speed | 3400 r/min |
| Limiting speed | 3600 r/min |
| Mass | 5.75 kg |
| Shoulder diameter of inner ring | 153 mm |
| Shoulder diameter of outer ring | – |
| Raceway diameter | 195.5 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing N 224 ECP ? Single row cylindrical roller bearing Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
