NC110CP0
Endura-kote Plated Bearings

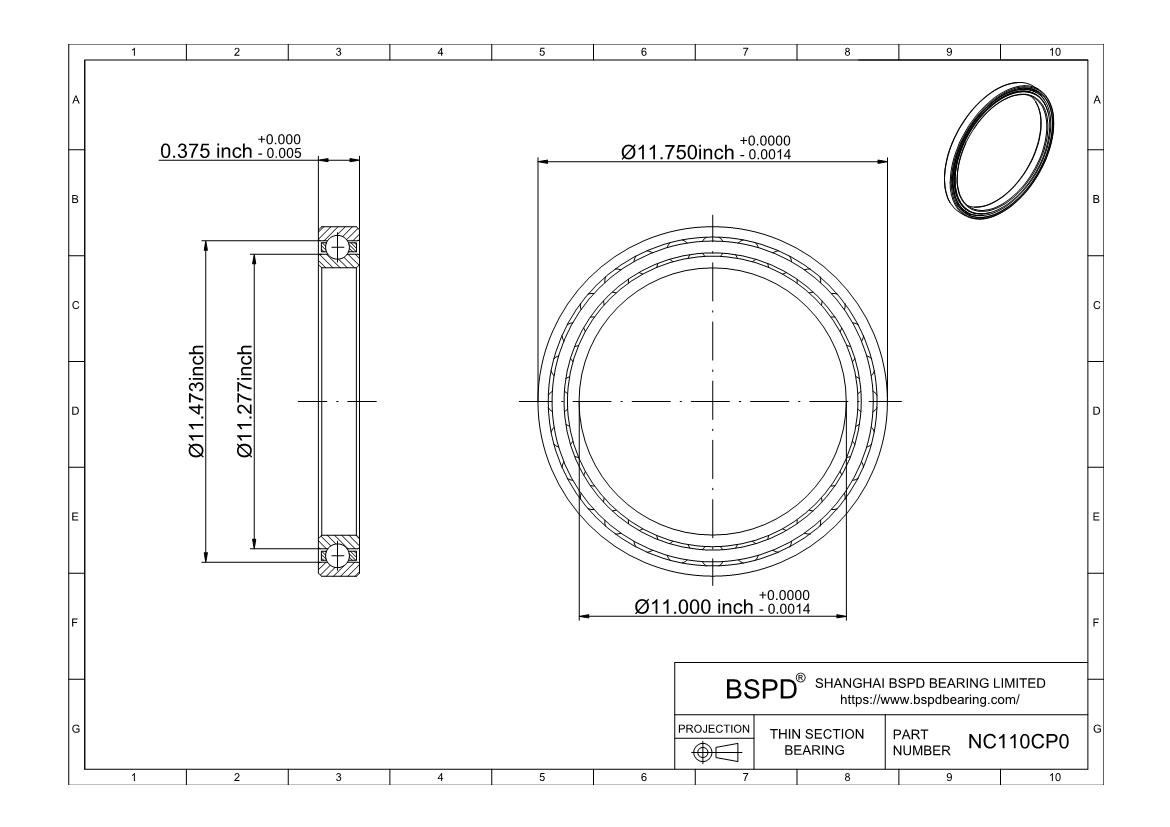

Dimensions: Bore (Inner) Diameter: 10.9998"； Outer Diameter: 11.7503"； Width (Thickness): 0.375";
REQUEST FOR QUOTE
Product Attributes
| Bearing Type | Ball |
| For Load Direction | Radial |
| Construction | Single Row |
| Seal Type | Open |
| Surface | Chromium Plating |
| Cross Section | 3/8" x 3/8" |
| Part Number | NC110CP0 |
| For Shaft Diameter | 10.9998" |
| Bore Dia (d) | 10.9998" |
| Bore Dia Tolerance | -0.0014"– 0" |
| For Housing ID | 11.7503" |
| Outer Dia (D) | 11.7503" |
| Outer Dia Tolerance | -0.0014"– 0" |
| Width (B) | 0.375" |
| Width Tolerance | +.000 –.005" |
| Land dia.L1 | 11.277" |
| Land dia.L2 | 11.473" |
| Ring Material | 52100 Chrome steel |
| Ball Material | 52100 Chrome steel |
| Cage Material | Brass |
| Dynamic radial (lbs) | 1879 |
| Static radial (lbs) | 5470 |
| Lubrication | Lubricated |
| Shaft Mount Type | Press Fit |
| Temperature Range | -30° to 110 °C |
| ABEC Rating | ABEC-1 |
| Radial Clearance | 0.0000 – 0.0005" |
| RoHS | Compliant |
| Weight (lbs) | 1.160 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Thin Section Bearings NC110CP0 ? Endura-kote Plated Bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
