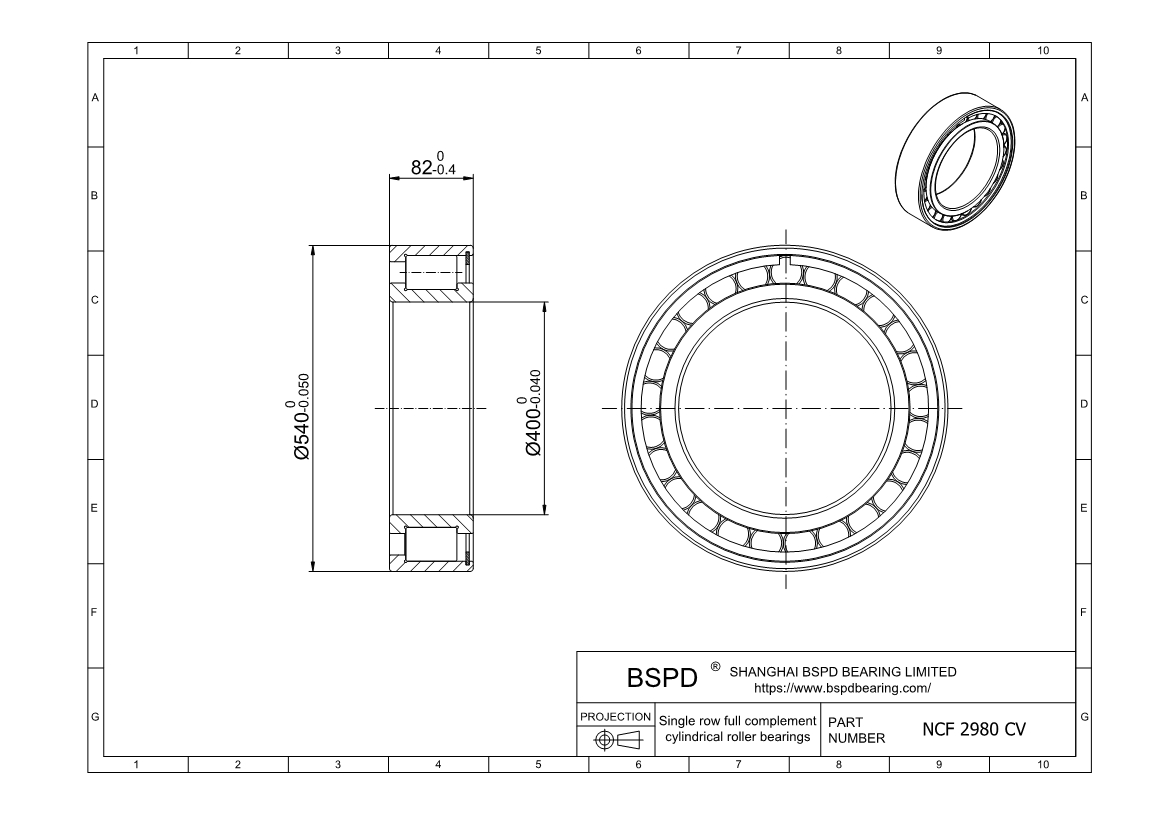

NCF 2980 CV High-capacity cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 400 mm； Outer Diameter: 540 mm； Width (Thickness): 82 mm;

REQUEST FOR QUOTE

Product Attributes

Product Number	NCF 2980 CV
Bore diameter	400 mm
Outside diameter	540 mm
Width	82 mm
Basic dynamic load rating	1650 kN
Basic static load rating	3450 kN
Fatigue load limit	310 kN
Reference speed	480 r/min
Limiting speed	600 r/min
Mass	54.5 kg
Shoulder diameter of inner ring	449 mm
Shoulder diameter of outer ring	499 mm
Raceway diameter	511 mm

Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
