NF350AR0 Endura-kote Plated Bearings

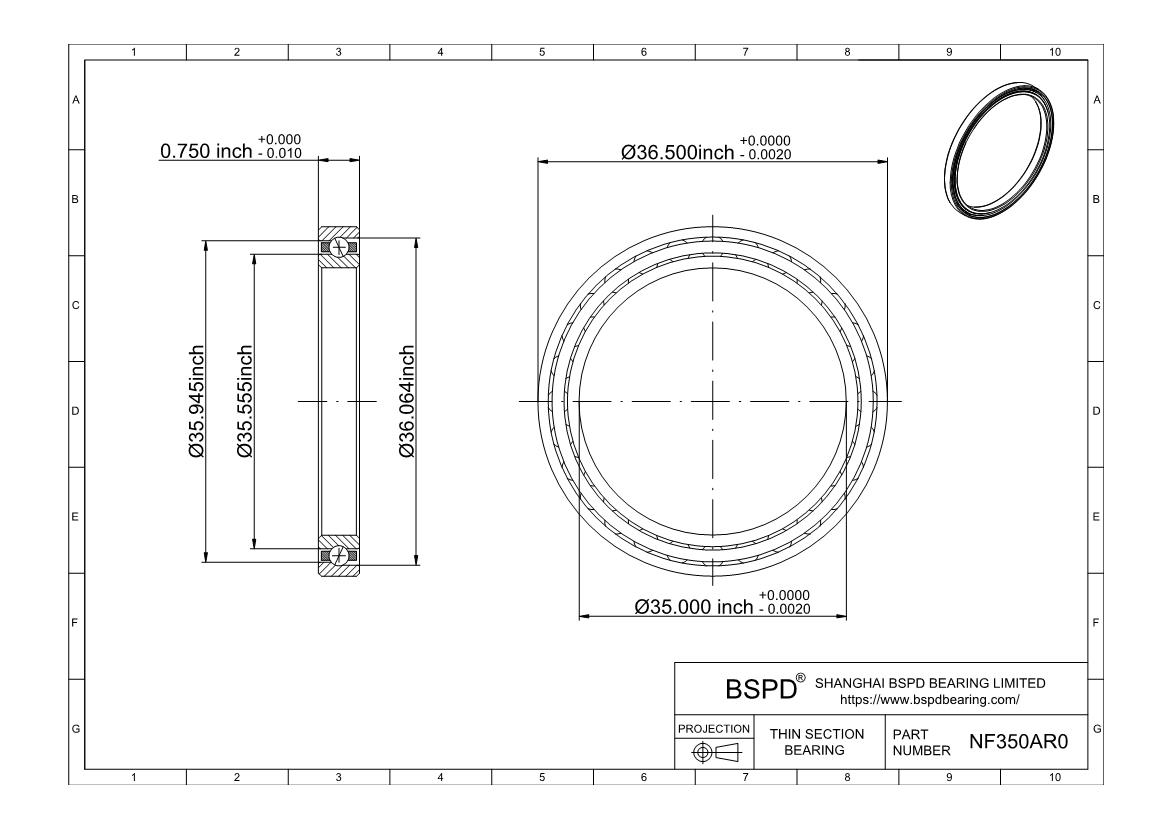

Dimensions: Bore (Inner) Diameter: 34.9998"; Outer Diameter: 36.5003"; Width (Thickness): 0.75";

NF350AR0
REQUEST FOR QUOTE
* *
Send
Product Attributes
Bearing Type Ball
For Load Direction Angular
Construction Single Row
Contact Angle 30°
Seal Type Open
Surface Chromium Plating
Cross Section 3/4" x 3/4"
Part Number NF350AR0
For Shaft Diameter 34.9998"
Bore Dia (d) 34.9998"
Bore Dia Tolerance -0.0020"– 0"
For Housing ID 36.5003"
Outer Dia (D) 36.5003"
Outer Dia Tolerance -0.0020"– 0"
Width (B) 0.75"
Width Tolerance +.000 –.010"
Land dia.L1 35.555"
Land dia.L2 35.945"
C'Bore dia.L3 36.064"
Ring Material 52100 Chrome steel
Ball Material 52100 Chrome steel
Cage Material Brass
Dynamic radial (lbs) 11382
Static (lbs) Thrust 32580
Radial 48380
Thrust 139700
Lubrication Lubricated
Shaft Mount Type Press Fit
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance 0.0000 – 0.0005"
RoHS Compliant
Weight (lbs) 14.600
NF350AR0
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
