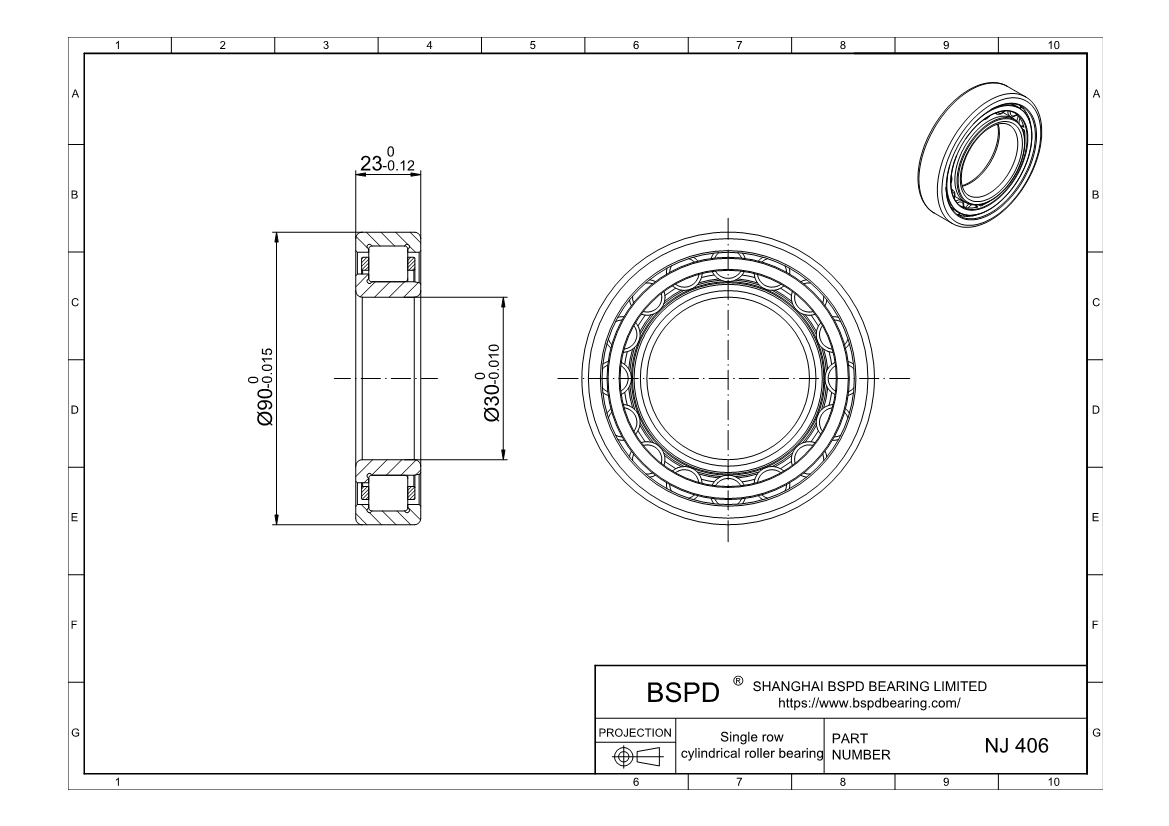

NJ 406
Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 30 mm； Outer Diameter: 90 mm； Width (Thickness): 23 mm;
REQUEST FOR QUOTE
cylindrical roller bearing of similar size
same inner diameter
same outer diameter
same width
Product Attributes
| Product Number | NJ 406 |
| Bore diameter | 30 mm |
| Outside diameter | 90 mm |
| Width | 23 mm |
| Basic dynamic load rating | 60.5 kN |
| Basic static load rating | 53 kN |
| Fatigue load limit | 6.8 kN |
| Reference speed | 9000 r/min |
| Limiting speed | 11000 r/min |
| Mass | 0.78 kg |
| Shoulder diameter of inner ring | 50.5 mm |
| Shoulder diameter of outer ring | 66.1 mm |
| Raceway diameter | 45 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NJ 406 ? Single row cylindrical roller bearing Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
