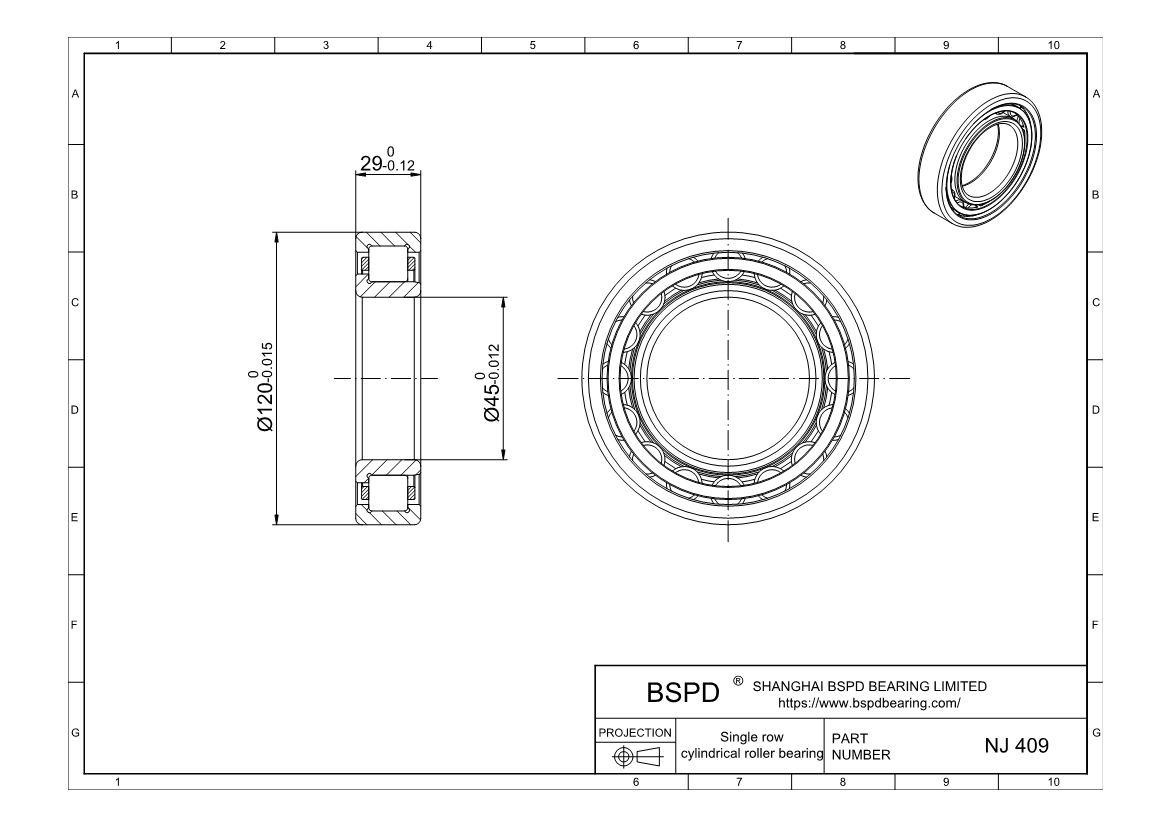

NJ 409
Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 45 mm； Outer Diameter: 120 mm； Width (Thickness): 29 mm;
REQUEST FOR QUOTE
cylindrical roller bearing of similar size
same inner diameter
same outer diameter
same width
Product Attributes
| Product Number | NJ 409 |
| Bore diameter | 45 mm |
| Outside diameter | 120 mm |
| Width | 29 mm |
| Basic dynamic load rating | 106 kN |
| Basic static load rating | 102 kN |
| Fatigue load limit | 13.4 kN |
| Reference speed | 6700 r/min |
| Limiting speed | 7500 r/min |
| Mass | 1.65 kg |
| Shoulder diameter of inner ring | 71.8 mm |
| Shoulder diameter of outer ring | 93.4 mm |
| Raceway diameter | 64.5 mm |
Print PDF
Request a 3D CAD Model
