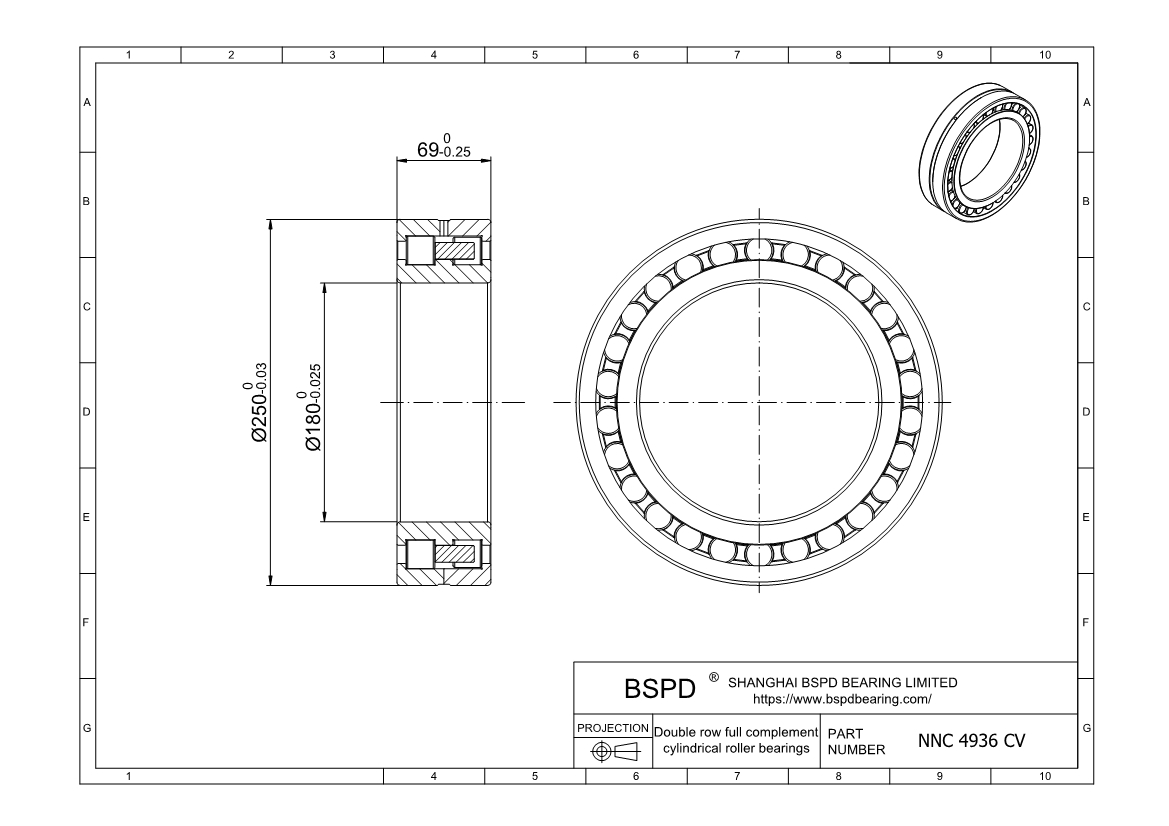

NNC 4936 CV
Double row full complement cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 180 mm； Outer Diameter: 250 mm； Width (Thickness): 69 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NNC 4936 CV |
| Bore diameter | 180 mm |
| Outside diameter | 250 mm |
| Width | 69 mm |
| Basic dynamic load rating | 594 kN |
| Basic static load rating | 1220 kN |
| Fatigue load limit | 127 kN |
| Reference speed | 1100 r/min |
| Limiting speed | 1400 r/min |
| Mass | 11 kg |
| Shoulder diameter of inner ring | 206 mm |
| Shoulder diameter of outer ring | 224 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NNC 4936 CV ? Double row full complement cylindrical roller bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
