NNC 4964 CV Double row full complement cylindrical roller bearings

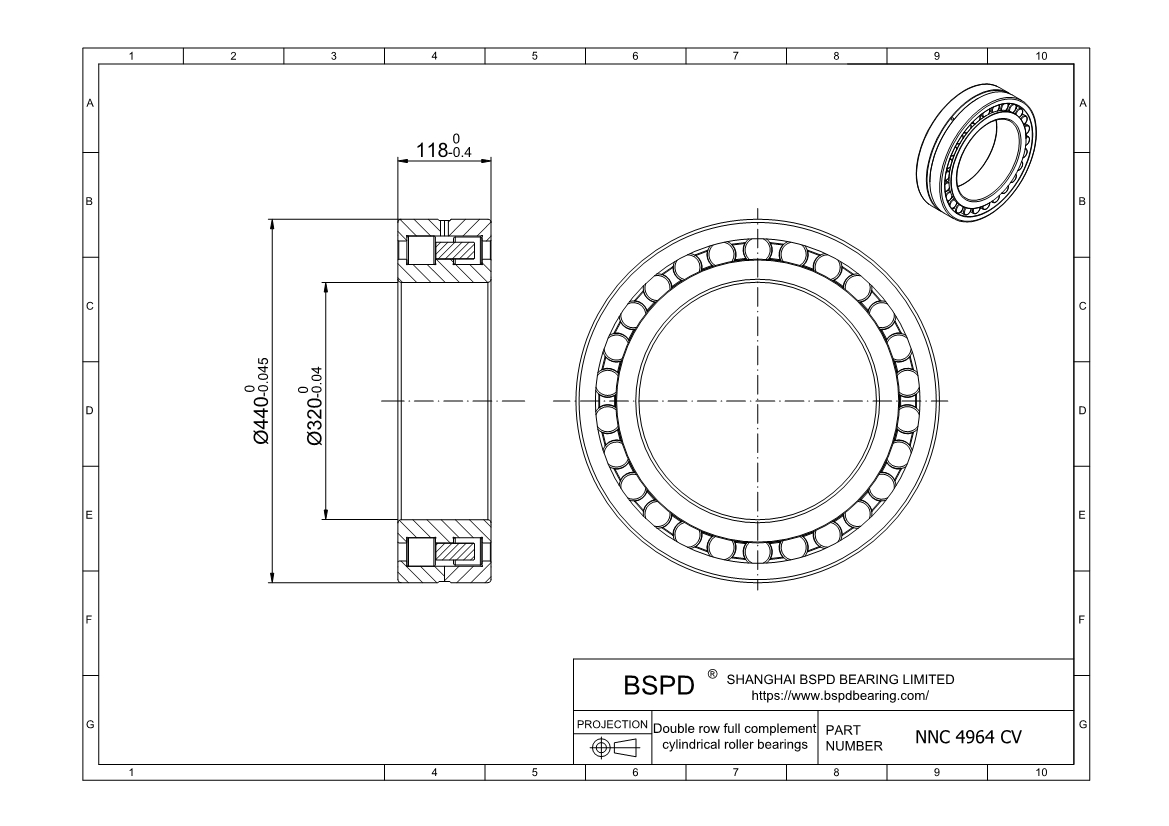

Dimensions: Bore (Inner) Diameter: 320 mm; Outer Diameter: 440 mm; Width (Thickness): 118 mm;

NNC 4964 CV
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product NumberNNC 4964 CV
Bore diameter320 mm
Outside diameter440 mm
Width118 mm
Basic dynamic load rating1760 kN
Basic static load rating4050 kN
Fatigue load limit375 kN
Reference speed600 r/min
Limiting speed750 r/min
Mass56 kg
Shoulder diameter of inner ring368 mm
Shoulder diameter of outer ring401 mm
NNC 4964 CV
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NNC 4964 CV ? Double row full complement cylindrical roller bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
