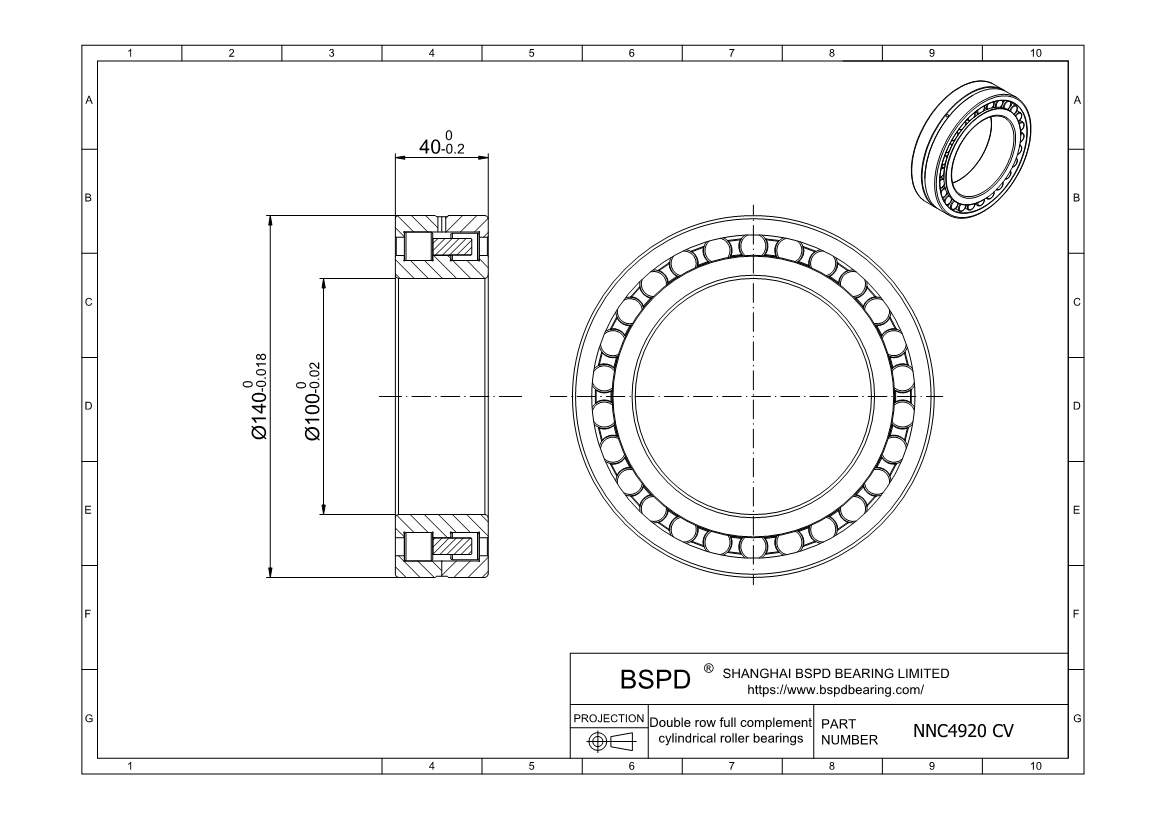

NNC4920 CV
Double row full complement cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 100 mm； Outer Diameter: 140 mm； Width (Thickness): 40 mm;
REQUEST FOR QUOTE
cylindrical roller bearing of similar size
same inner diameter
same outer diameter
same width
Product Attributes
| Product Number | NNC4920 CV |
| Bore diameter | 100 mm |
| Outside diameter | 140 mm |
| Width | 40 mm |
| Basic dynamic load rating | 209 kN |
| Basic static load rating | 400 kN |
| Fatigue load limit | 46.5 kN |
| Reference speed | 2000 r/min |
| Limiting speed | 2600 r/min |
| Mass | 1.95 kg |
| Shoulder diameter of inner ring | 116 mm |
| Shoulder diameter of outer ring | 125 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NNC4920 CV ? Double row full complement cylindrical roller bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
