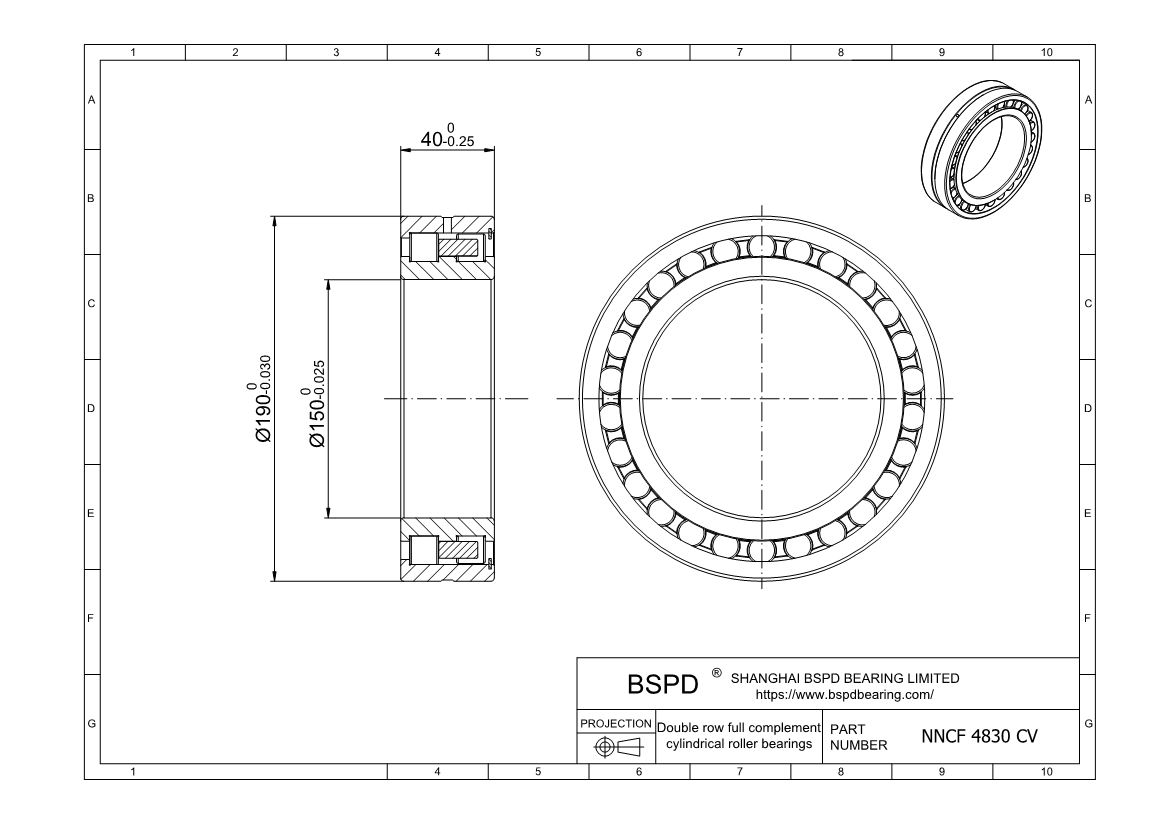

NNCF 4830 CV Double row full complement cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 150 mm； Outer Diameter: 190 mm； Width (Thickness): 40 mm;

REQUEST FOR QUOTE

Product Attributes

Product Number	NNCF 4830 CV
Bore diameter	150 mm
Outside diameter	190 mm
Width	40 mm
Basic dynamic load rating	255 kN
Basic static load rating	585 kN
Fatigue load limit	60 kN
Reference speed	1500 r/min
Limiting speed	1800 r/min
Mass	2.8 kg
Shoulder diameter of inner ring	166 mm
Shoulder diameter of outer ring	173 mm
