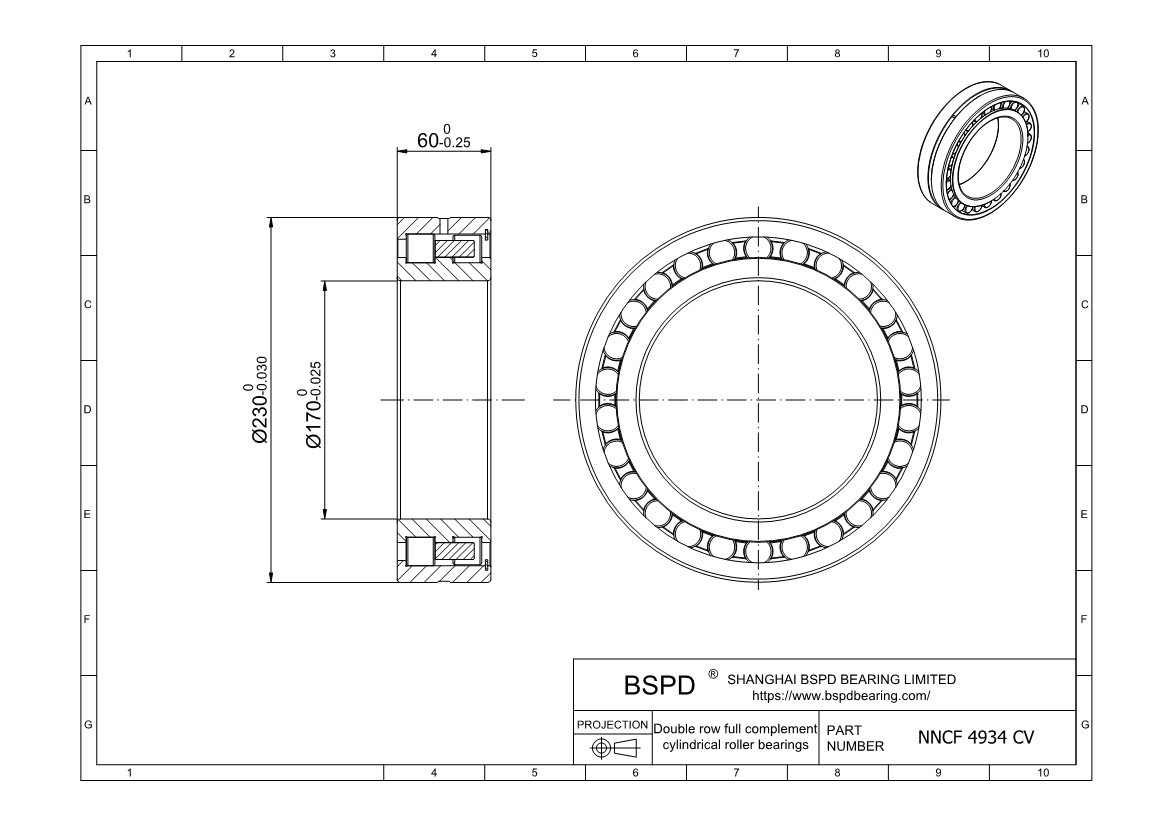

NNCF 4934 CV
Double row full complement cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 170 mm； Outer Diameter: 230 mm； Width (Thickness): 60 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NNCF 4934 CV |
| Bore diameter | 170 mm |
| Outside diameter | 230 mm |
| Width | 60 mm |
| Basic dynamic load rating | 457 kN |
| Basic static load rating | 950 kN |
| Fatigue load limit | 100 kN |
| Reference speed | 1200 r/min |
| Limiting speed | 1500 r/min |
| Mass | 7.2 kg |
| Shoulder diameter of inner ring | 194 mm |
| Shoulder diameter of outer ring | 209 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NNCF 4934 CV ? Double row full complement cylindrical roller bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
