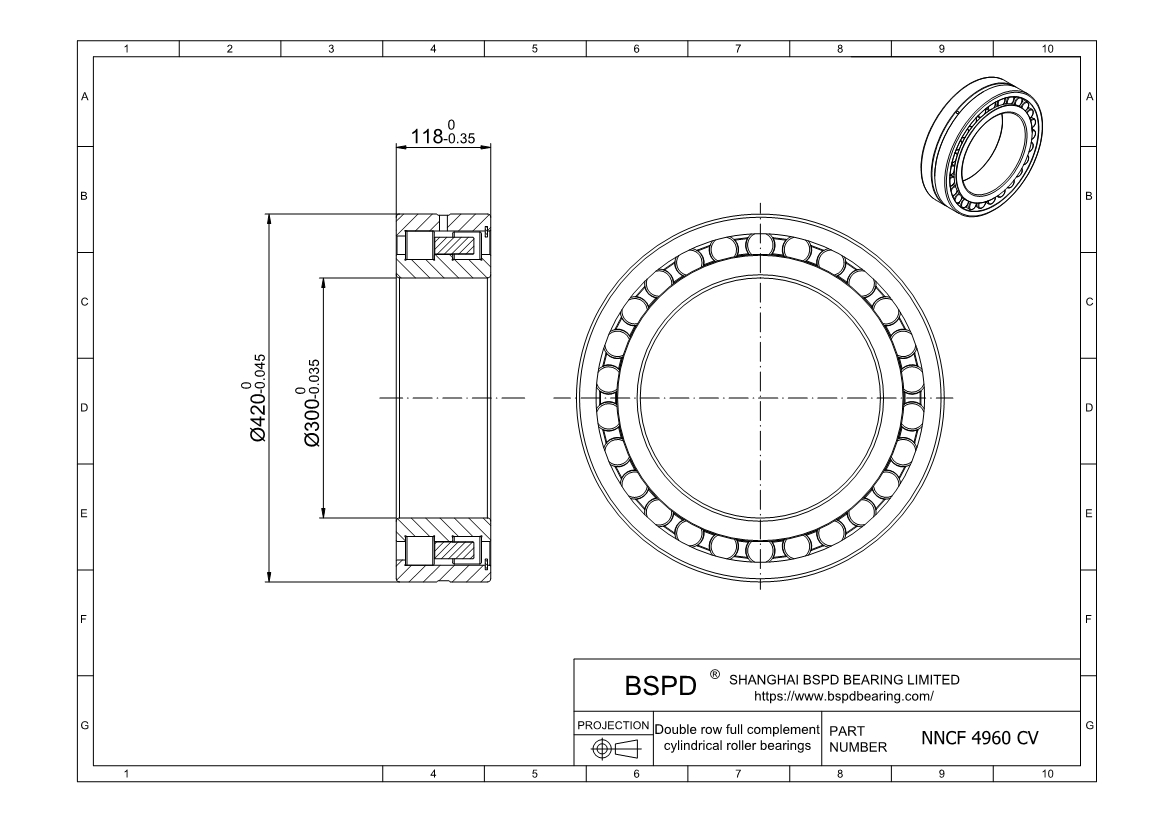

NNCF 4960 CV
Double row full complement cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 300 mm； Outer Diameter: 420 mm； Width (Thickness): 118 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NNCF 4960 CV |
| Bore diameter | 300 mm |
| Outside diameter | 420 mm |
| Width | 118 mm |
| Basic dynamic load rating | 1680 kN |
| Basic static load rating | 3750 kN |
| Fatigue load limit | 355 kN |
| Reference speed | 670 r/min |
| Limiting speed | 800 r/min |
| Mass | 52.5 kg |
| Shoulder diameter of inner ring | 340 mm |
| Shoulder diameter of outer ring | 374 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NNCF 4960 CV ? Double row full complement cylindrical roller bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
