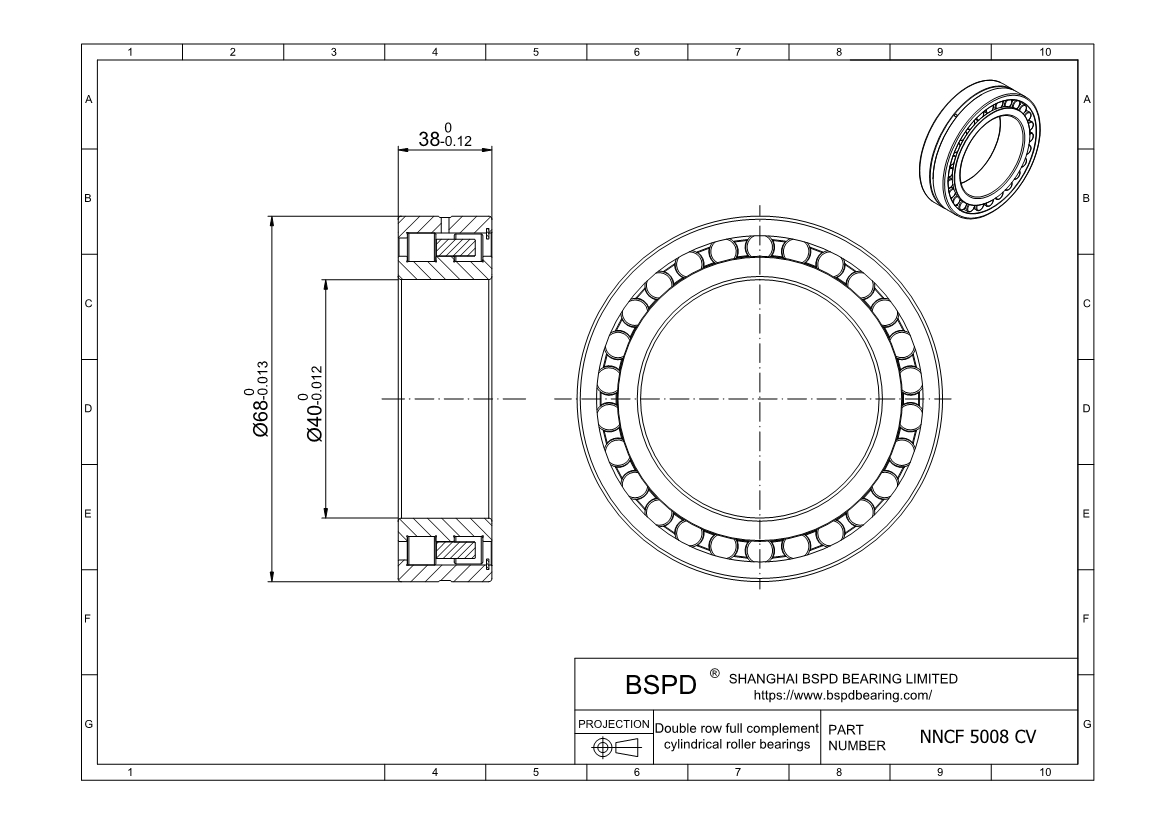

NNCF 5008 CV
Double row full complement cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 40 mm； Outer Diameter: 68 mm； Width (Thickness): 38 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NNCF 5008 CV |
| Bore diameter | 40 mm |
| Outside diameter | 68 mm |
| Width | 38 mm |
| Basic dynamic load rating | 106 kN |
| Basic static load rating | 140 kN |
| Fatigue load limit | 17 kN |
| Reference speed | 4800 r/min |
| Limiting speed | 6000 r/min |
| Mass | 0.56 kg |
| Shoulder diameter of inner ring | 50.5 mm |
| Shoulder diameter of outer ring | 57.2 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NNCF 5008 CV ? Double row full complement cylindrical roller bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
