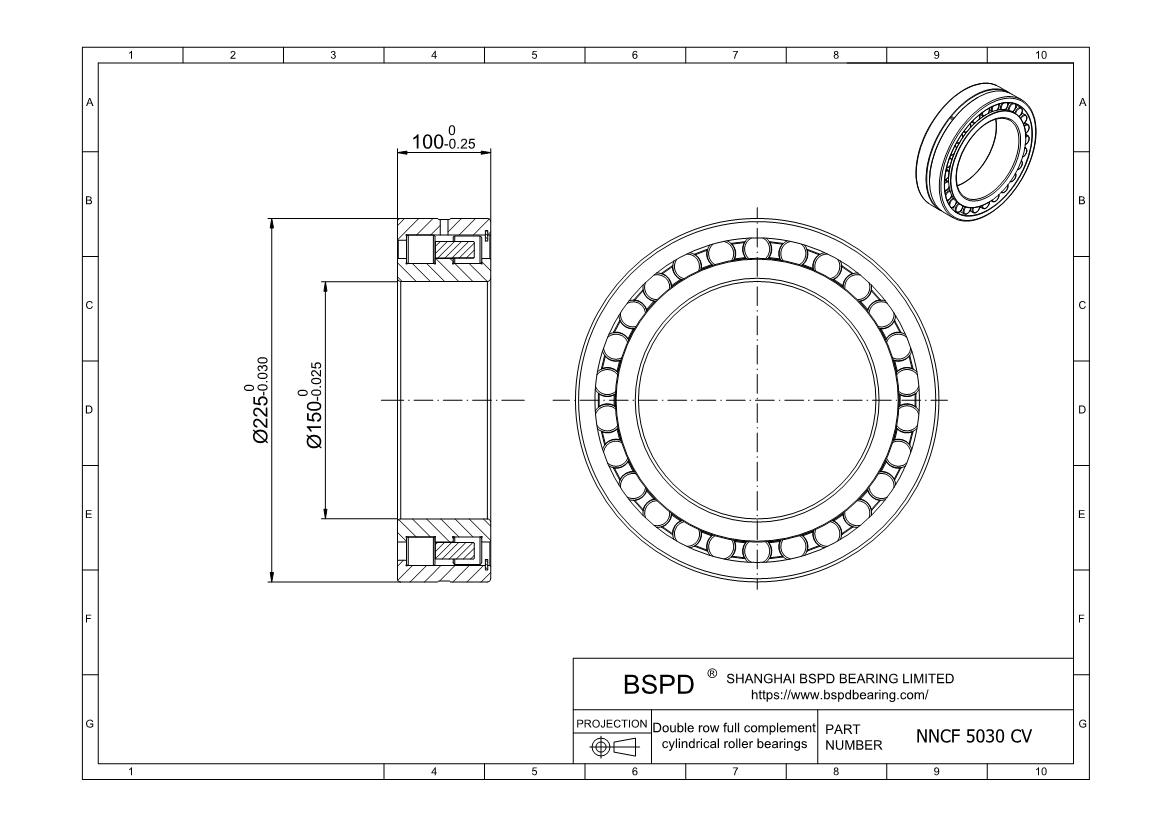

NNCF 5030 CV Double row full complement cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 150 mm； Outer Diameter: 225 mm； Width (Thickness): 100 mm;

REQUEST FOR QUOTE

Product Attributes

Product Number	NNCF 5030 CV
Bore diameter	150 mm
Outside diameter	225 mm
Width	100 mm
Basic dynamic load rating	842 kN
Basic static load rating	1430 kN
Fatigue load limit	160 kN
Reference speed	1300 r/min
Limiting speed	1700 r/min
Mass	13.5 kg
Shoulder diameter of inner ring	170 mm
Shoulder diameter of outer ring	198 mm
