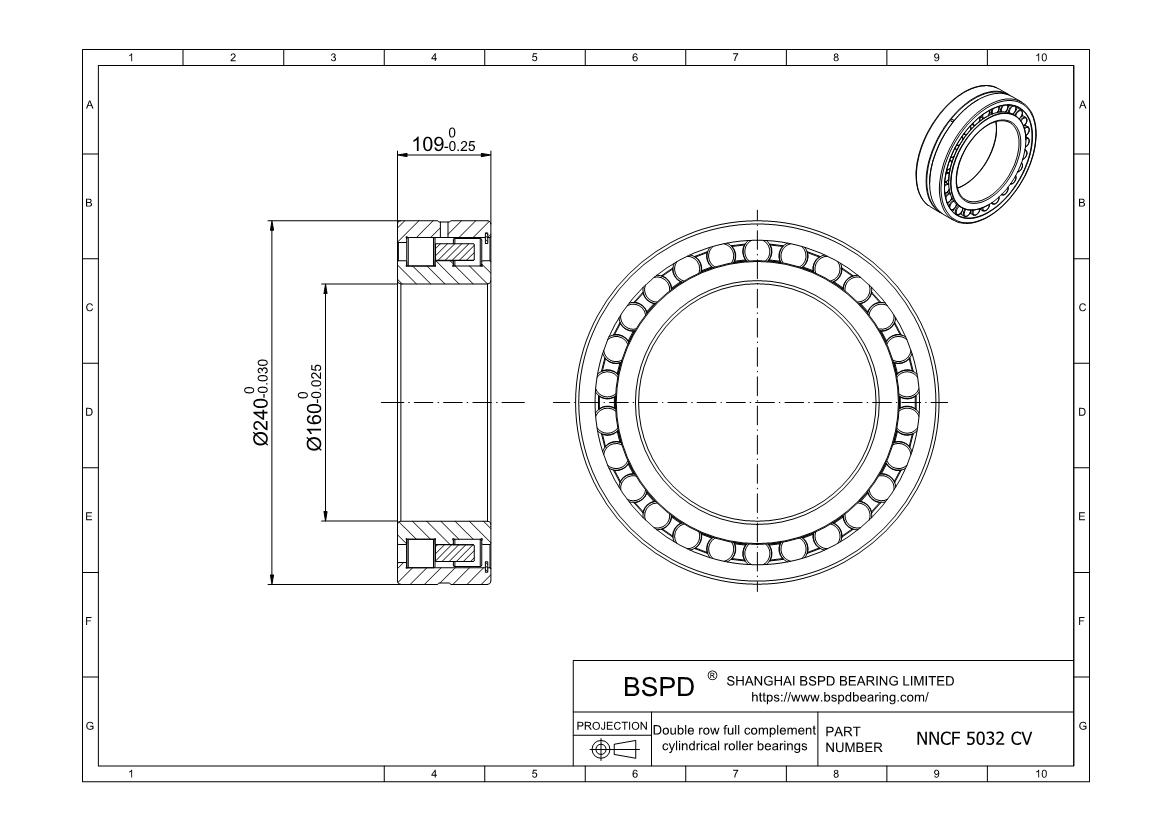

NNCF 5032 CV
Double row full complement cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 160 mm； Outer Diameter: 240 mm； Width (Thickness): 109 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NNCF 5032 CV |
| Bore diameter | 160 mm |
| Outside diameter | 240 mm |
| Width | 109 mm |
| Basic dynamic load rating | 952 kN |
| Basic static load rating | 1600 kN |
| Fatigue load limit | 180 kN |
| Reference speed | 1200 r/min |
| Limiting speed | 1500 r/min |
| Mass | 16 kg |
| Shoulder diameter of inner ring | 185 mm |
| Shoulder diameter of outer ring | 216 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NNCF 5032 CV ? Double row full complement cylindrical roller bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
