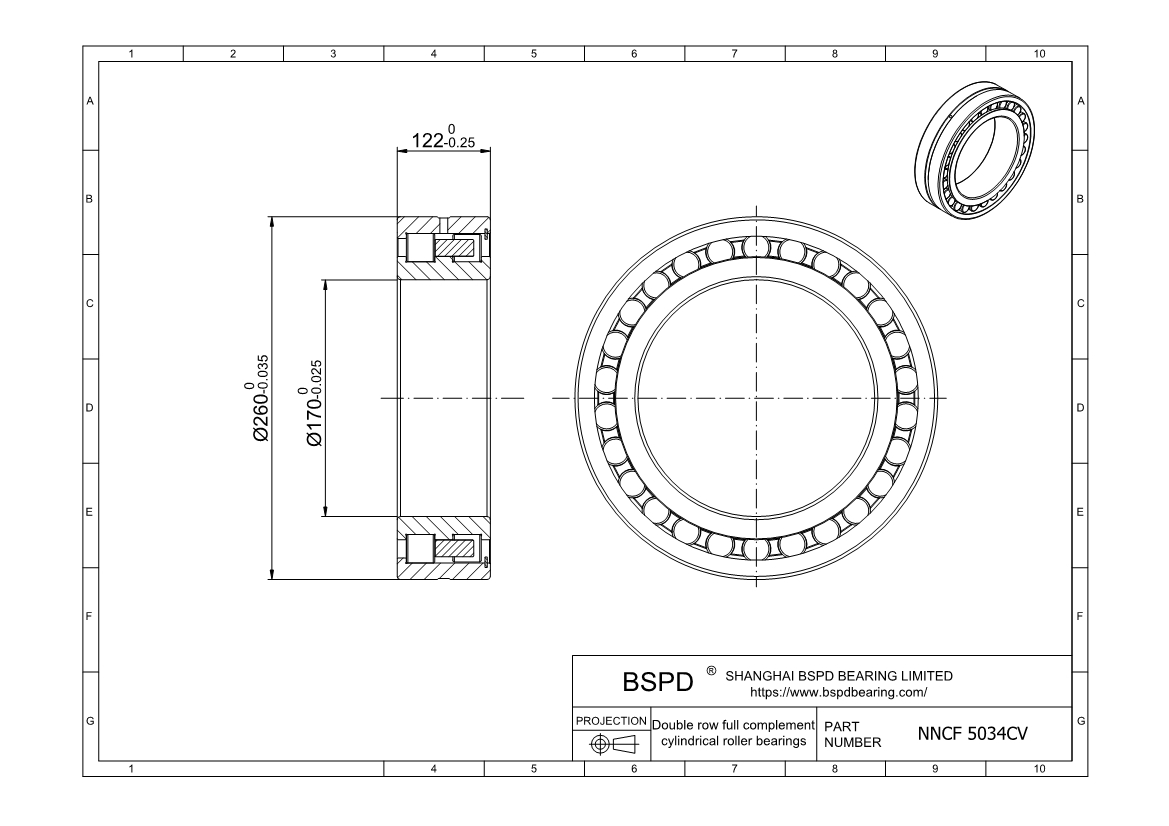

NNCF 5034CV
Double row full complement cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 170 mm； Outer Diameter: 260 mm； Width (Thickness): 122 mm;
REQUEST FOR QUOTE
cylindrical roller bearing of similar size
same inner diameter
same outer diameter
same width
Product Attributes
| Product Number | NNCF 5034CV |
| Bore diameter | 170 mm |
| Outside diameter | 260 mm |
| Width | 122 mm |
| Basic dynamic load rating | 1230 kN |
| Basic static load rating | 2120 kN |
| Fatigue load limit | 236 kN |
| Reference speed | 1100 r/min |
| Limiting speed | 1400 r/min |
| Mass | 23 kg |
| Shoulder diameter of inner ring | 198 mm |
| Shoulder diameter of outer ring | 232 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NNCF 5034CV ? Double row full complement cylindrical roller bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
