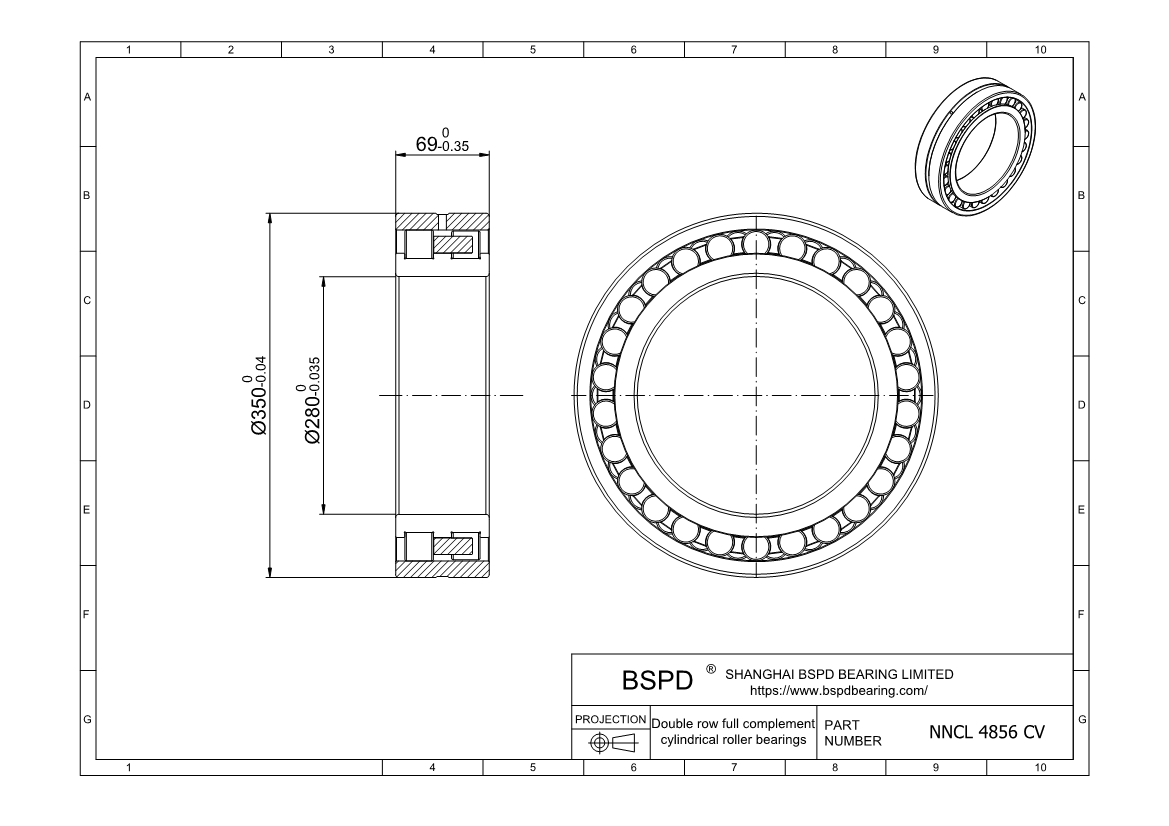

NNCL 4856 CV
Double row full complement cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 280 mm； Outer Diameter: 350 mm； Width (Thickness): 69 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NNCL 4856 CV |
| Bore diameter | 280 mm |
| Outside diameter | 350 mm |
| Width | 69 mm |
| Basic dynamic load rating | 737 kN |
| Basic static load rating | 1860 kN |
| Fatigue load limit | 173 kN |
| Reference speed | 750 r/min |
| Limiting speed | 950 r/min |
| Mass | 15.5 kg |
| Shoulder diameter of inner ring | 308 mm |
| Shoulder diameter of outer ring | – |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NNCL 4856 CV ? Double row full complement cylindrical roller bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
