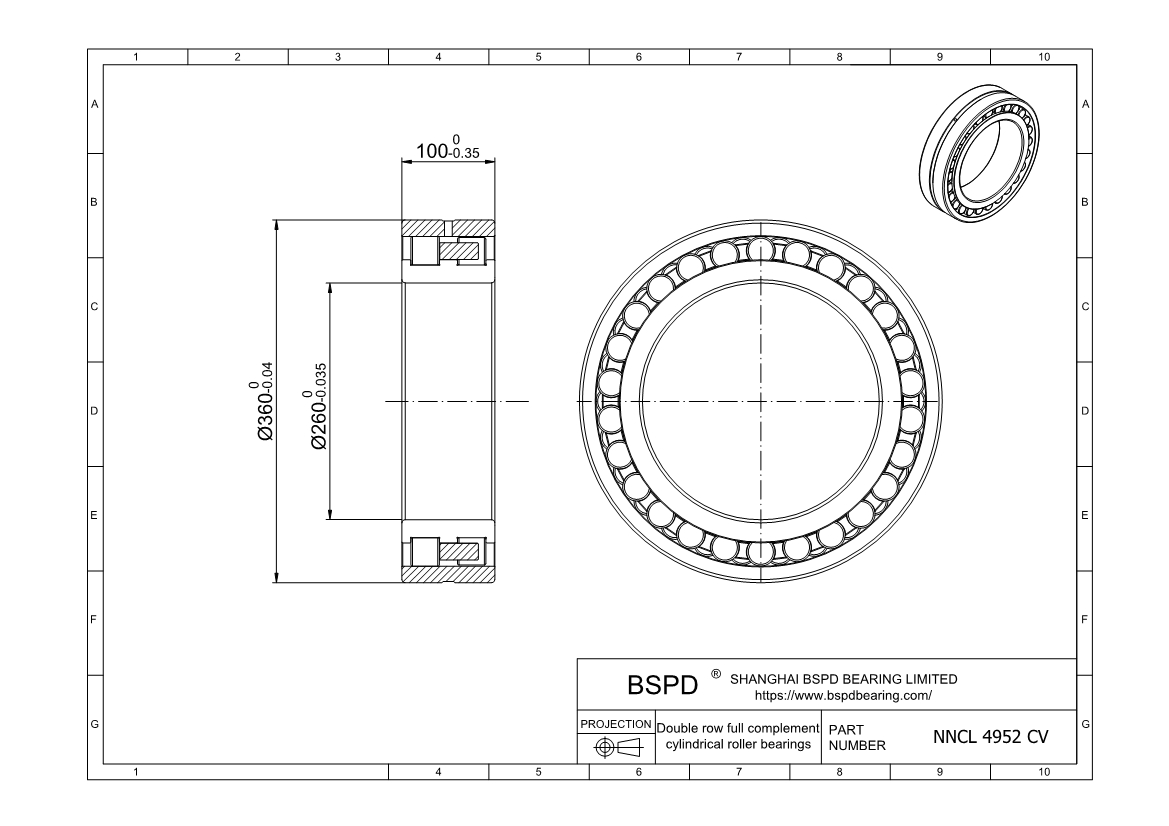

NNCL 4952 CV Double row full complement cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 260 mm； Outer Diameter: 360 mm； Width (Thickness): 100 mm;

REQUEST FOR QUOTE

Product Attributes

Product Number	NNCL 4952 CV
Bore diameter	260 mm
Outside diameter	360 mm
Width	100 mm
Basic dynamic load rating	1170 kN
Basic static load rating	2550 kN
Fatigue load limit	245 kN
Reference speed	750 r/min
Limiting speed	950 r/min
Mass	31 kg
Shoulder diameter of inner ring	295 mm
Shoulder diameter of outer ring	–

Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings

What are the types of cylindrical roller bearing NNCL 4952 CV ? Double row full complement cylindrical roller bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation

Fast Delivery √
Best Quality √
Good Price √
