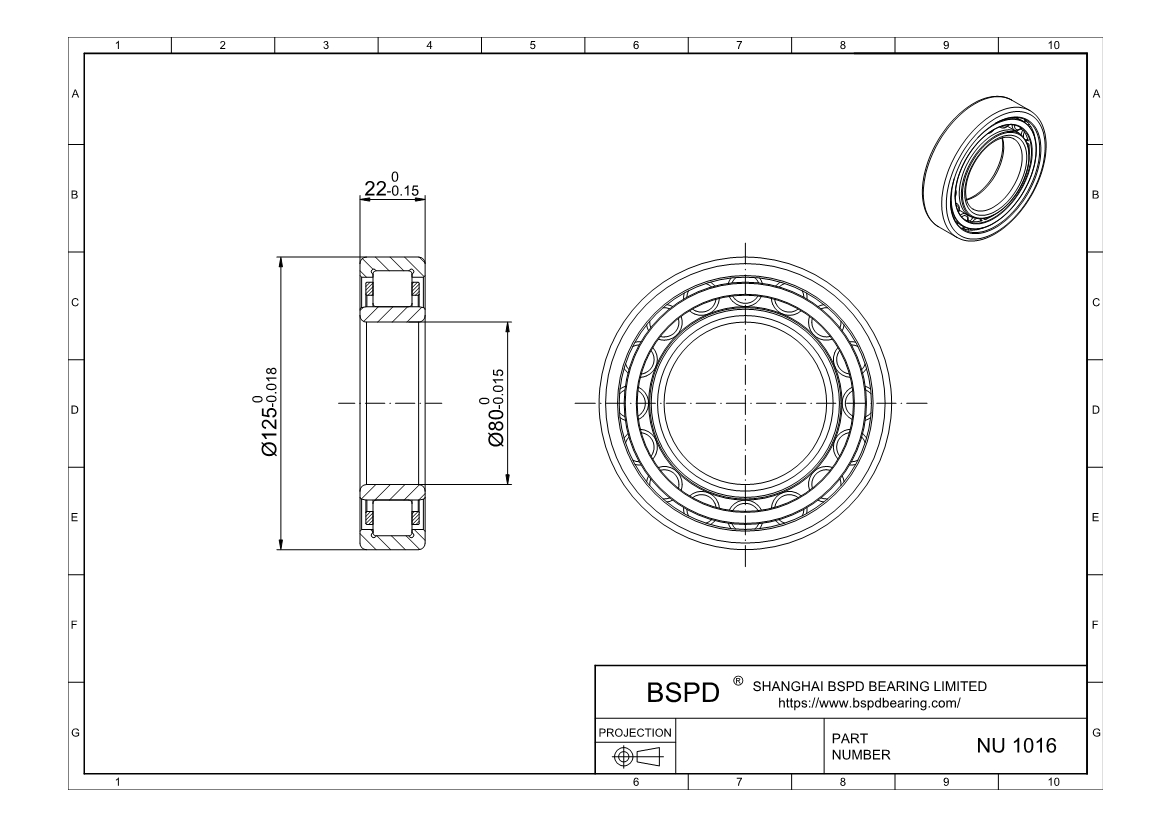

NU 1016
Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 80 mm； Outer Diameter: 125 mm； Width (Thickness): 22 mm;
REQUEST FOR QUOTE
cylindrical roller bearing of similar size
same inner diameter
same outer diameter
same width
Product Attributes
| Product Number | NU 1016 |
| Bore diameter | 80 mm |
| Outside diameter | 125 mm |
| Width | 22 mm |
| Basic dynamic load rating | 64.4 kN |
| Basic static load rating | 78 kN |
| Fatigue load limit | 9.8 kN |
| Reference speed | 6300 r/min |
| Limiting speed | 6300 r/min |
| Mass | 0.88 kg |
| Shoulder diameter of inner ring | – |
| Shoulder diameter of outer ring | 108.55 mm |
| Raceway diameter | 91.5 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NU 1016 ? Single row cylindrical roller bearing Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
