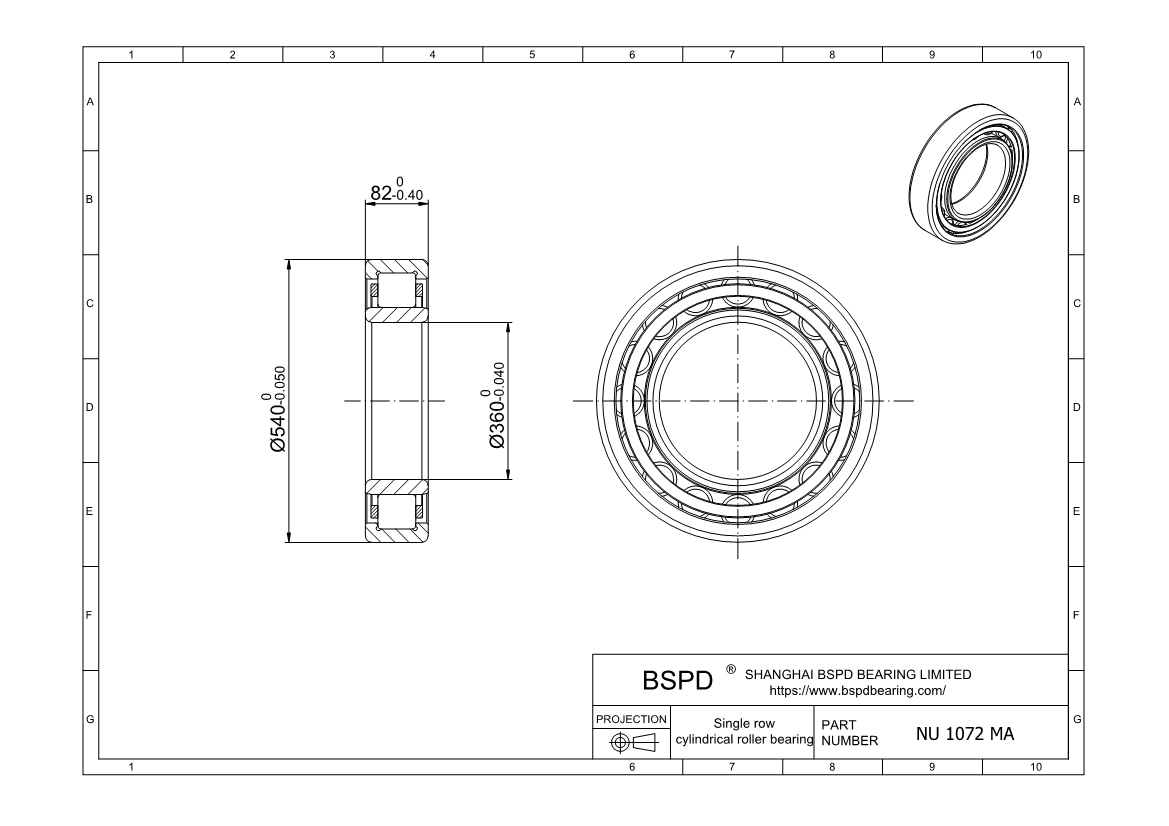

NU 1072 MA Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 360 mm; Outer Diameter: 540 mm; Width (Thickness): 82 mm;

NU 1072 MA
REQUEST FOR QUOTE
* *
Send
Product Attributes
Product NumberNU 1072 MA
Bore diameter360 mm
Outside diameter540 mm
Width82 mm
Basic dynamic load rating1100 kN
Basic static load rating1830 kN
Fatigue load limit163 kN
Reference speed1300 r/min
Limiting speed1600 r/min
Mass67.5 kg
Shoulder diameter of inner ring
Shoulder diameter of outer ring475 mm
Raceway diameter405 mm
NU 1072 MA
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NU 1072 MA ? Single row cylindrical roller bearing Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
