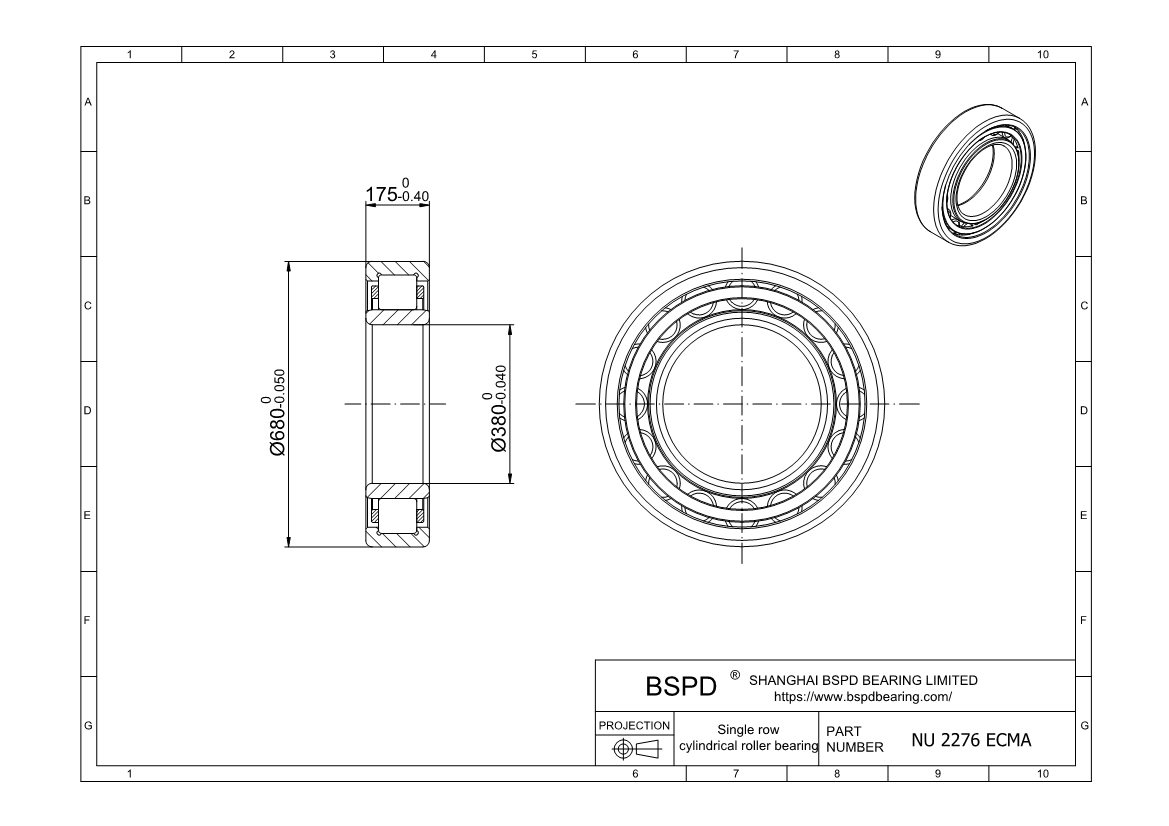

NU 2276 ECMA
Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 380 mm； Outer Diameter: 680 mm； Width (Thickness): 175 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NU 2276 ECMA |
| Bore diameter | 380 mm |
| Outside diameter | 680 mm |
| Width | 175 mm |
| Basic dynamic load rating | 3960 kN |
| Basic static load rating | 6400 kN |
| Fatigue load limit | 510 kN |
| Reference speed | 850 r/min |
| Limiting speed | 1300 r/min |
| Mass | 288 kg |
| Shoulder diameter of inner ring | – |
| Shoulder diameter of outer ring | 595 mm |
| Raceway diameter | 451 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NU 2276 ECMA ? Single row cylindrical roller bearing Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
