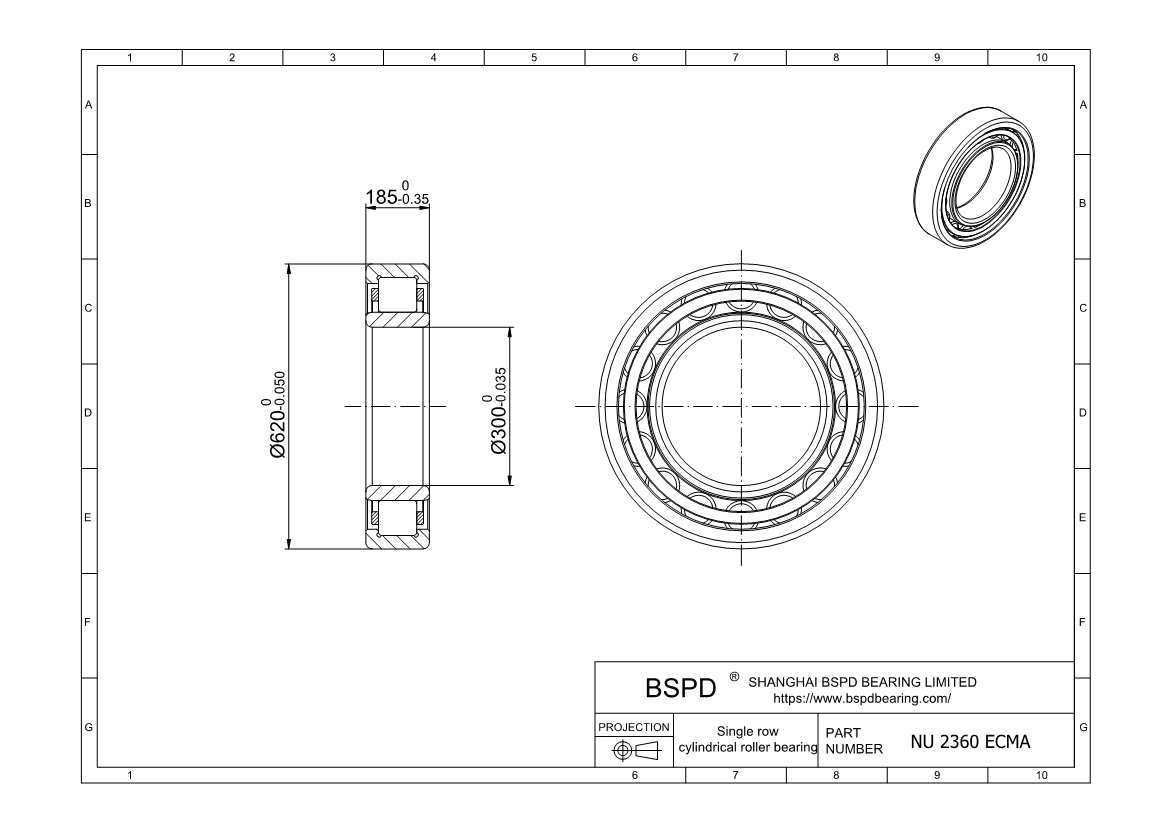

NU 2360 ECMA
Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 300 mm； Outer Diameter: 620 mm； Width (Thickness): 185 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NU 2360 ECMA |
| Bore diameter | 300 mm |
| Outside diameter | 620 mm |
| Width | 185 mm |
| Basic dynamic load rating | 4020 kN |
| Basic static load rating | 5850 kN |
| Fatigue load limit | 480 kN |
| Reference speed | 950 r/min |
| Limiting speed | 1600 r/min |
| Mass | 270 kg |
| Shoulder diameter of inner ring | – |
| Shoulder diameter of outer ring | 535 mm |
| Raceway diameter | 371 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NU 2360 ECMA ? Single row cylindrical roller bearing Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
