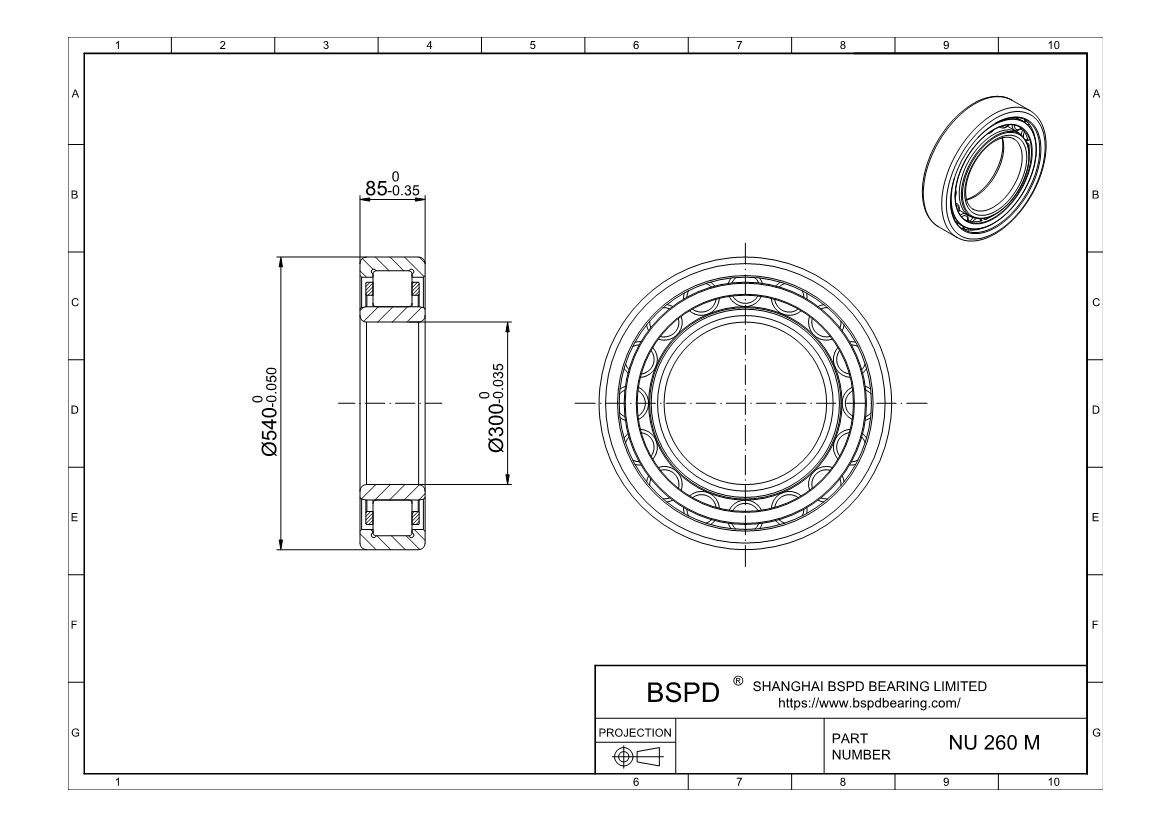

NU 260 M
Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 300 mm； Outer Diameter: 540 mm； Width (Thickness): 85 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NU 260 M |
| Bore diameter | 300 mm |
| Outside diameter | 540 mm |
| Width | 85 mm |
| Basic dynamic load rating | 1420 kN |
| Basic static load rating | 2120 kN |
| Fatigue load limit | 183 kN |
| Reference speed | 1300 r/min |
| Limiting speed | 1400 r/min |
| Mass | 89.5 kg |
| Shoulder diameter of inner ring | – |
| Shoulder diameter of outer ring | 451 mm |
| Raceway diameter | 364 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NU 260 M ? Single row cylindrical roller bearing Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
