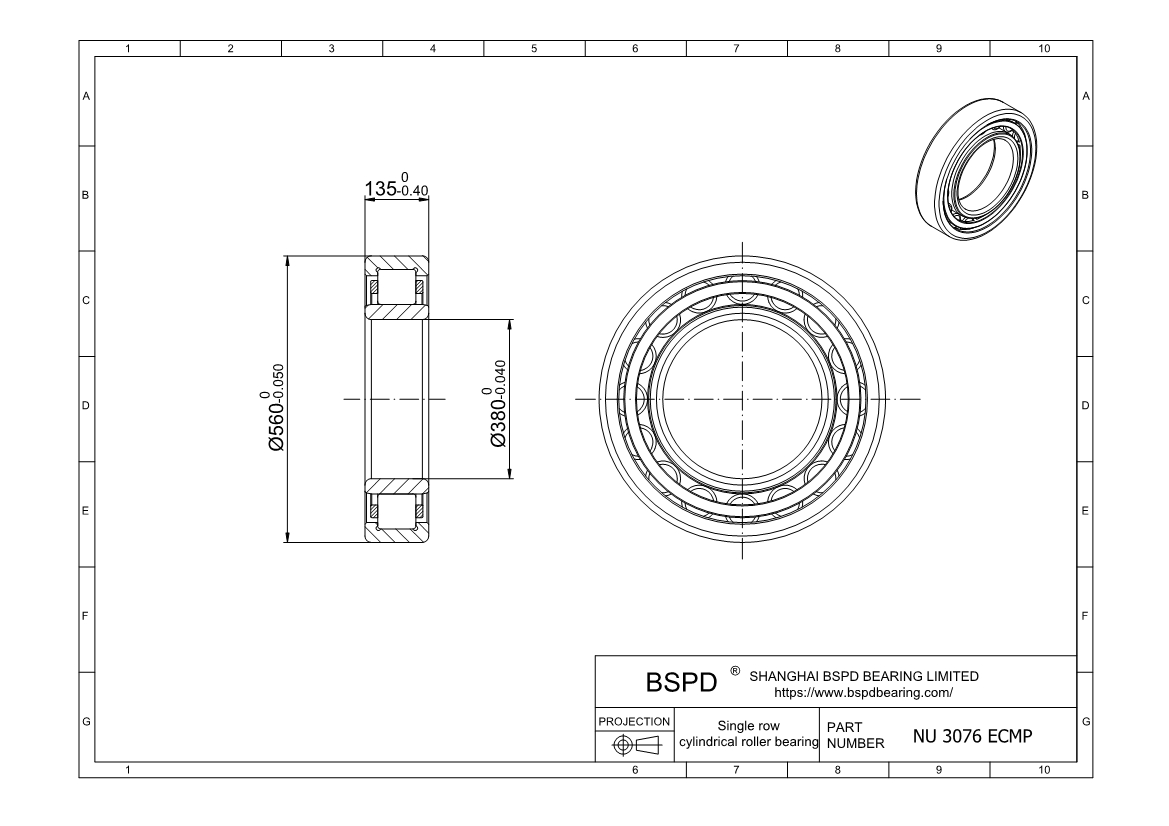

NU 3076 ECMP
Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 380 mm； Outer Diameter: 560 mm； Width (Thickness): 135 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NU 3076 ECMP |
| Bore diameter | 380 mm |
| Outside diameter | 560 mm |
| Width | 135 mm |
| Basic dynamic load rating | 2380 kN |
| Basic static load rating | 4750 kN |
| Fatigue load limit | 400 kN |
| Reference speed | 1000 r/min |
| Limiting speed | 1800 r/min |
| Mass | 109 kg |
| Shoulder diameter of inner ring | – |
| Shoulder diameter of outer ring | 506 mm |
| Raceway diameter | 425 mm |
Print PDF
Request a 3D CAD Model
