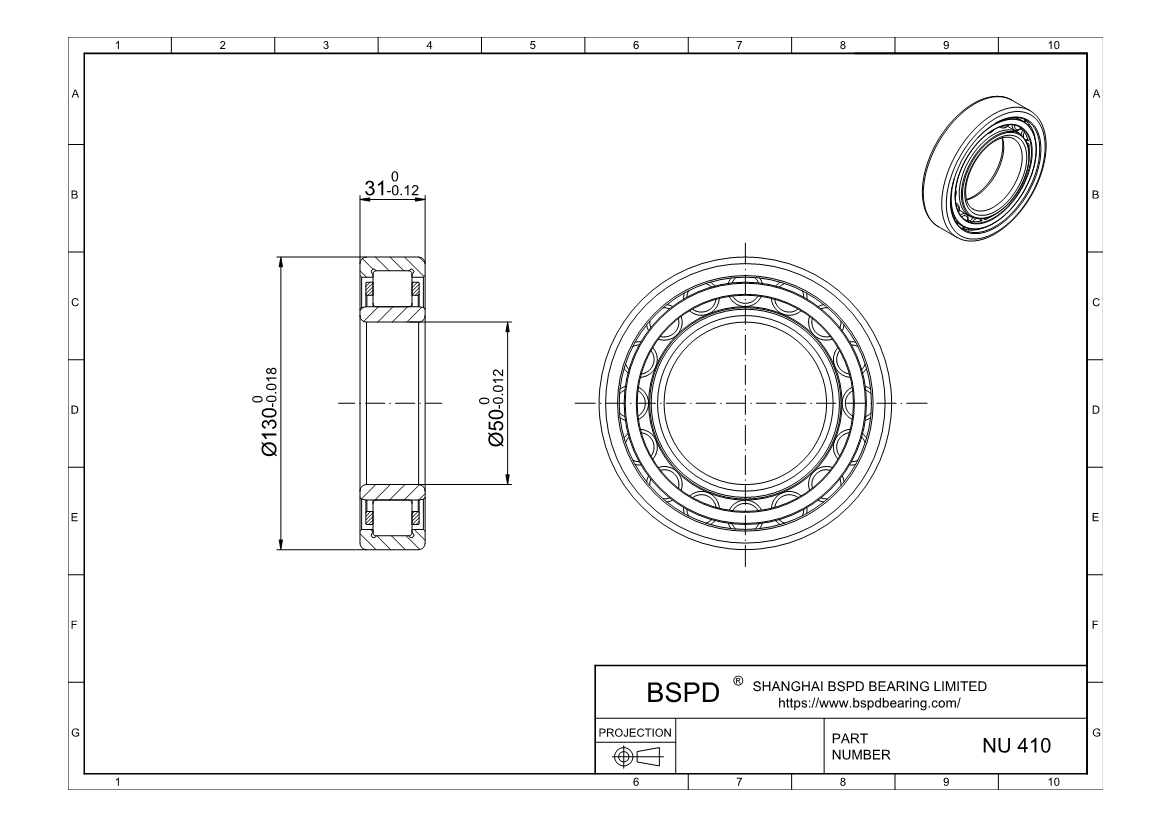

NU 410
Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 50 mm； Outer Diameter: 130 mm； Width (Thickness): 31 mm;
REQUEST FOR QUOTE
cylindrical roller bearing of similar size
same inner diameter
same outer diameter
same width
Product Attributes
| Product Number | NU 410 |
| Bore diameter | 50 mm |
| Outside diameter | 130 mm |
| Width | 31 mm |
| Basic dynamic load rating | 130 kN |
| Basic static load rating | 127 kN |
| Fatigue load limit | 16.6 kN |
| Reference speed | 6000 r/min |
| Limiting speed | 7000 r/min |
| Mass | 2 kg |
| Shoulder diameter of inner ring | – |
| Shoulder diameter of outer ring | 101.6 mm |
| Raceway diameter | 70.8 mm |
Print PDF
Request a 3D CAD Model
