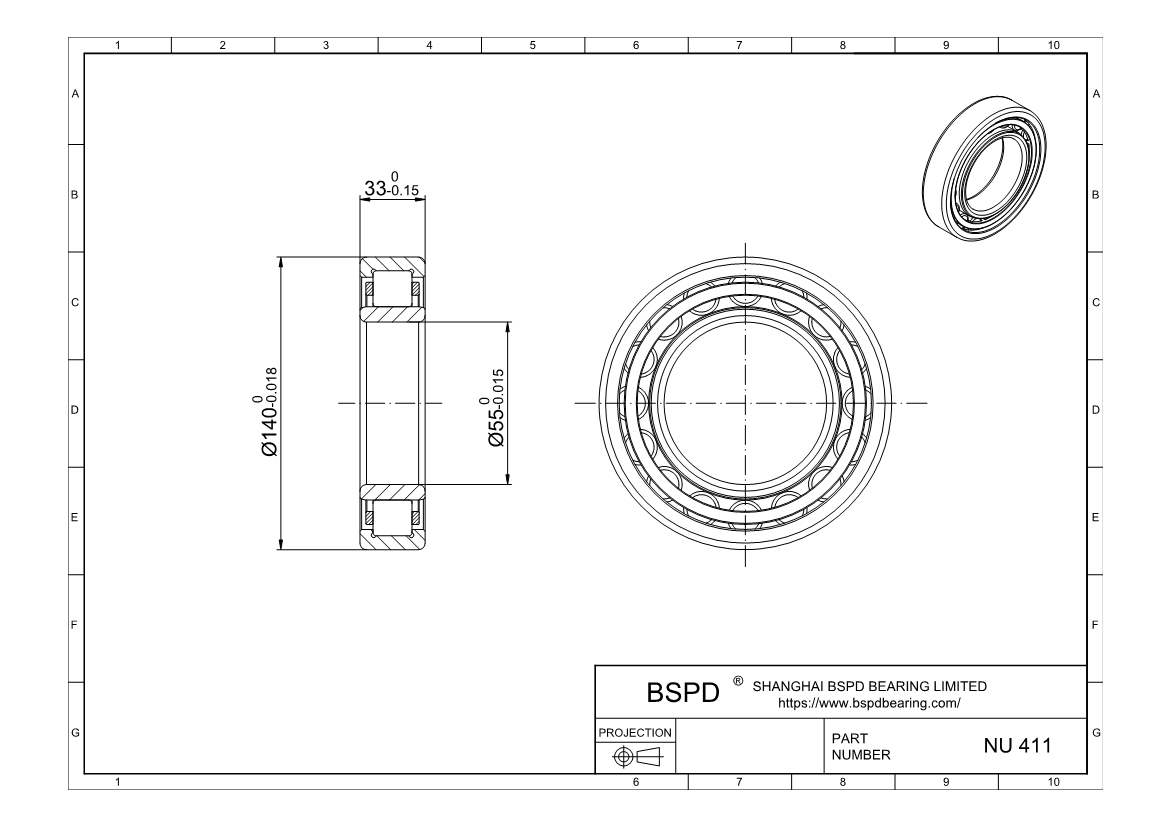

NU 411
Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 55 mm； Outer Diameter: 140 mm； Width (Thickness): 33 mm;
REQUEST FOR QUOTE
cylindrical roller bearing of similar size
same inner diameter
same outer diameter
same width
Product Attributes
| Product Number | NU 411 |
| Bore diameter | 55 mm |
| Outside diameter | 140 mm |
| Width | 33 mm |
| Basic dynamic load rating | 142 kN |
| Basic static load rating | 140 kN |
| Fatigue load limit | 18.6 kN |
| Reference speed | 5600 r/min |
| Limiting speed | 6300 r/min |
| Mass | 2.5 kg |
| Shoulder diameter of inner ring | – |
| Shoulder diameter of outer ring | 109.45 mm |
| Raceway diameter | 77.2 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NU 411 ? Single row cylindrical roller bearing Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
