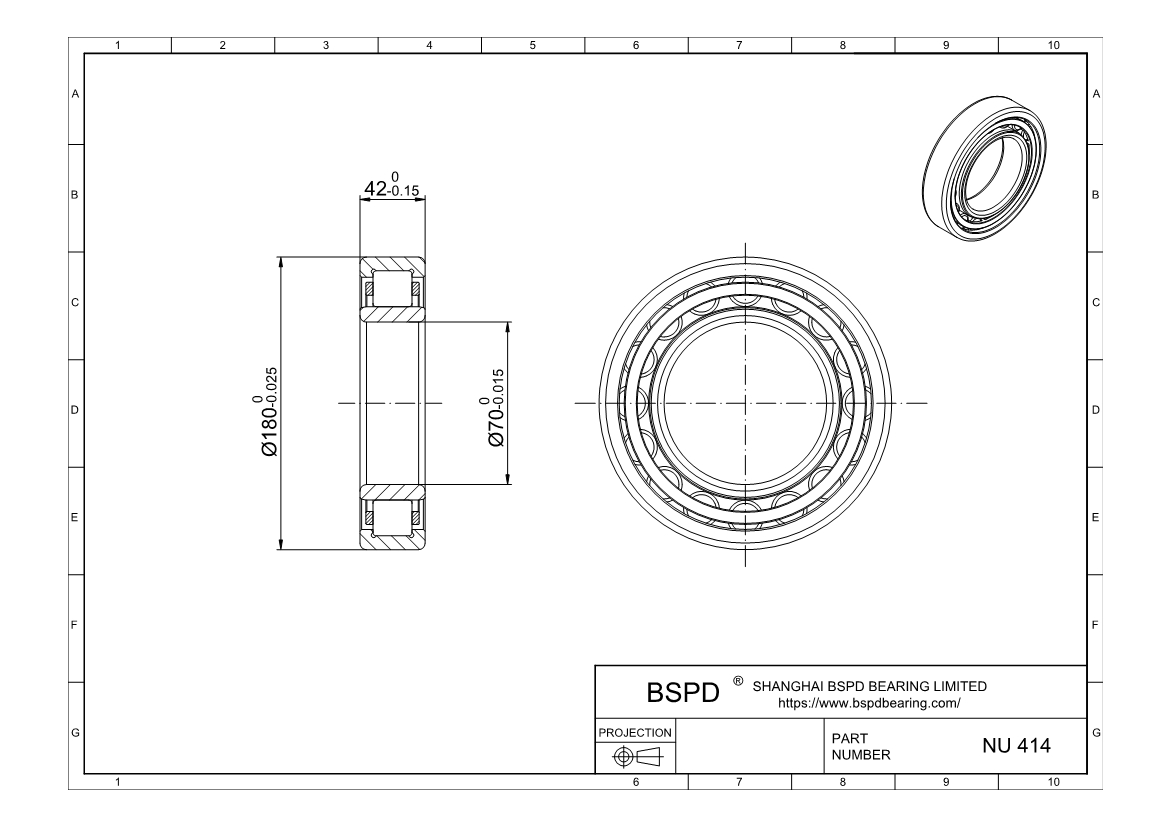

NU 414
Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 70 mm； Outer Diameter: 180 mm； Width (Thickness): 42 mm;
REQUEST FOR QUOTE
cylindrical roller bearing of similar size
same inner diameter
same outer diameter
same width
Product Attributes
| Product Number | NU 414 |
| Bore diameter | 70 mm |
| Outside diameter | 180 mm |
| Width | 42 mm |
| Basic dynamic load rating | 229 kN |
| Basic static load rating | 240 kN |
| Fatigue load limit | 30 kN |
| Reference speed | 4300 r/min |
| Limiting speed | 5000 r/min |
| Mass | 5.25 kg |
| Shoulder diameter of inner ring | – |
| Shoulder diameter of outer ring | 141 mm |
| Raceway diameter | 100 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NU 414 ? Single row cylindrical roller bearing Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
- Fast Delivery √
- Best Quality √
- Good Price √
