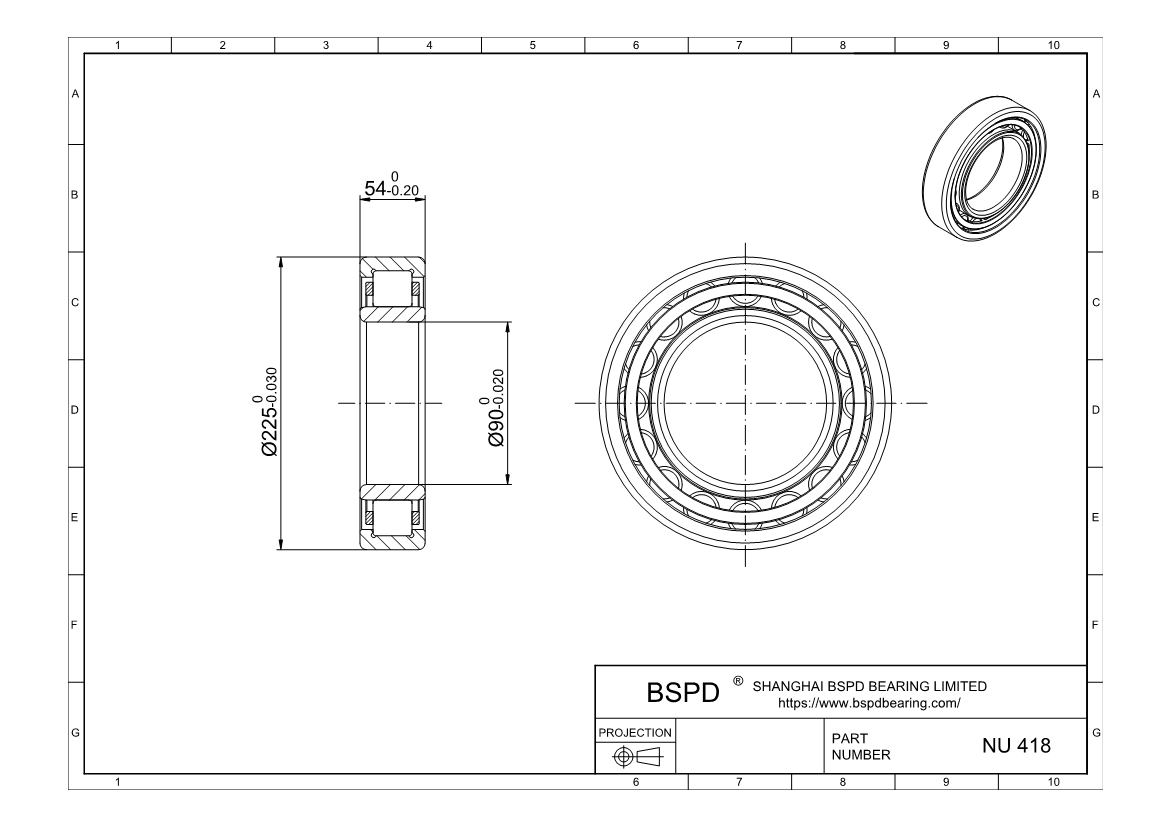

NU 418
Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 90 mm； Outer Diameter: 225 mm； Width (Thickness): 54 mm;
REQUEST FOR QUOTE
cylindrical roller bearing of similar size
same inner diameter
same outer diameter
same width
Product Attributes
| Product Number | NU 418 |
| Bore diameter | 90 mm |
| Outside diameter | 225 mm |
| Width | 54 mm |
| Basic dynamic load rating | 380 kN |
| Basic static load rating | 415 kN |
| Fatigue load limit | 48 kN |
| Reference speed | 3400 r/min |
| Limiting speed | 4000 r/min |
| Mass | 10 kg |
| Shoulder diameter of inner ring | – |
| Shoulder diameter of outer ring | 179.5 mm |
| Raceway diameter | 123.5 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
