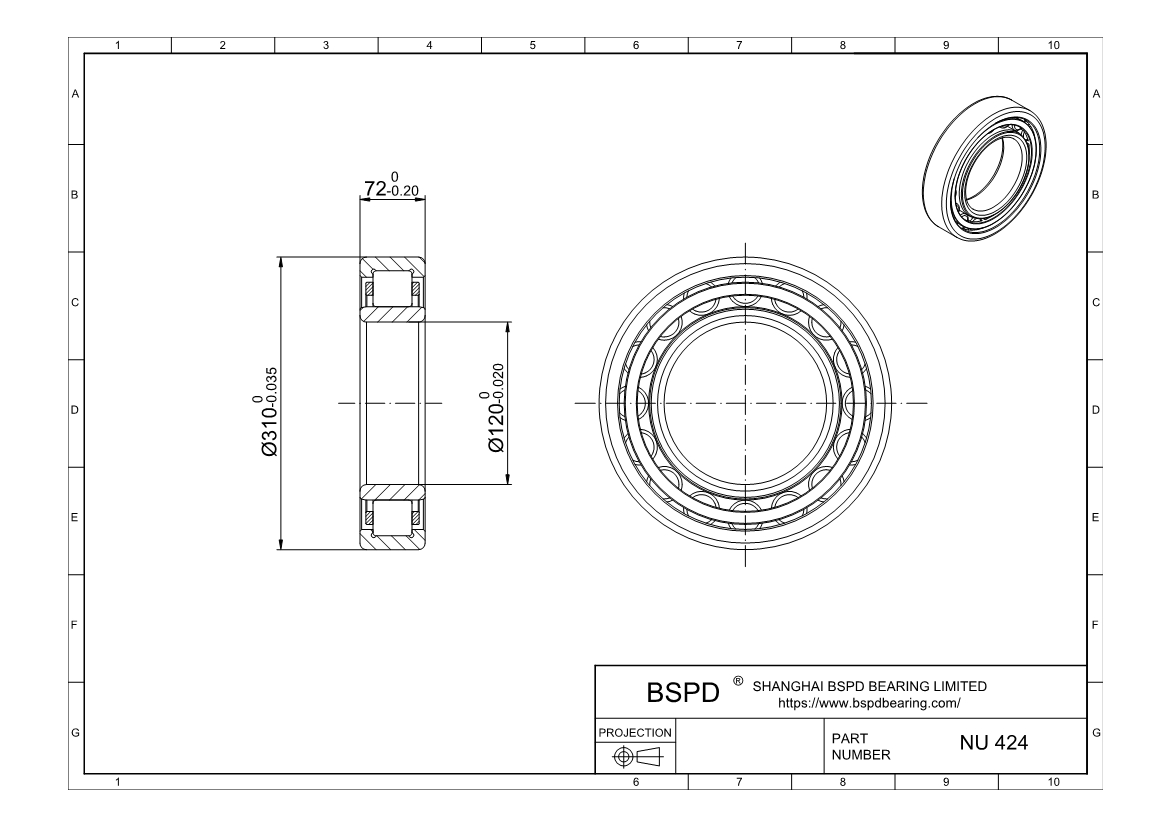

NU 424
Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 120 mm； Outer Diameter: 310 mm； Width (Thickness): 72 mm;
REQUEST FOR QUOTE
cylindrical roller bearing of similar size
same inner diameter
same outer diameter
same width
Product Attributes
| Product Number | NU 424 |
| Bore diameter | 120 mm |
| Outside diameter | 310 mm |
| Width | 72 mm |
| Basic dynamic load rating | 644 kN |
| Basic static load rating | 735 kN |
| Fatigue load limit | 78 kN |
| Reference speed | 2400 r/min |
| Limiting speed | 2800 r/min |
| Mass | 27.5 kg |
| Shoulder diameter of inner ring | – |
| Shoulder diameter of outer ring | 238.5 mm |
| Raceway diameter | 170 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NU 424 ? Single row cylindrical roller bearing Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
