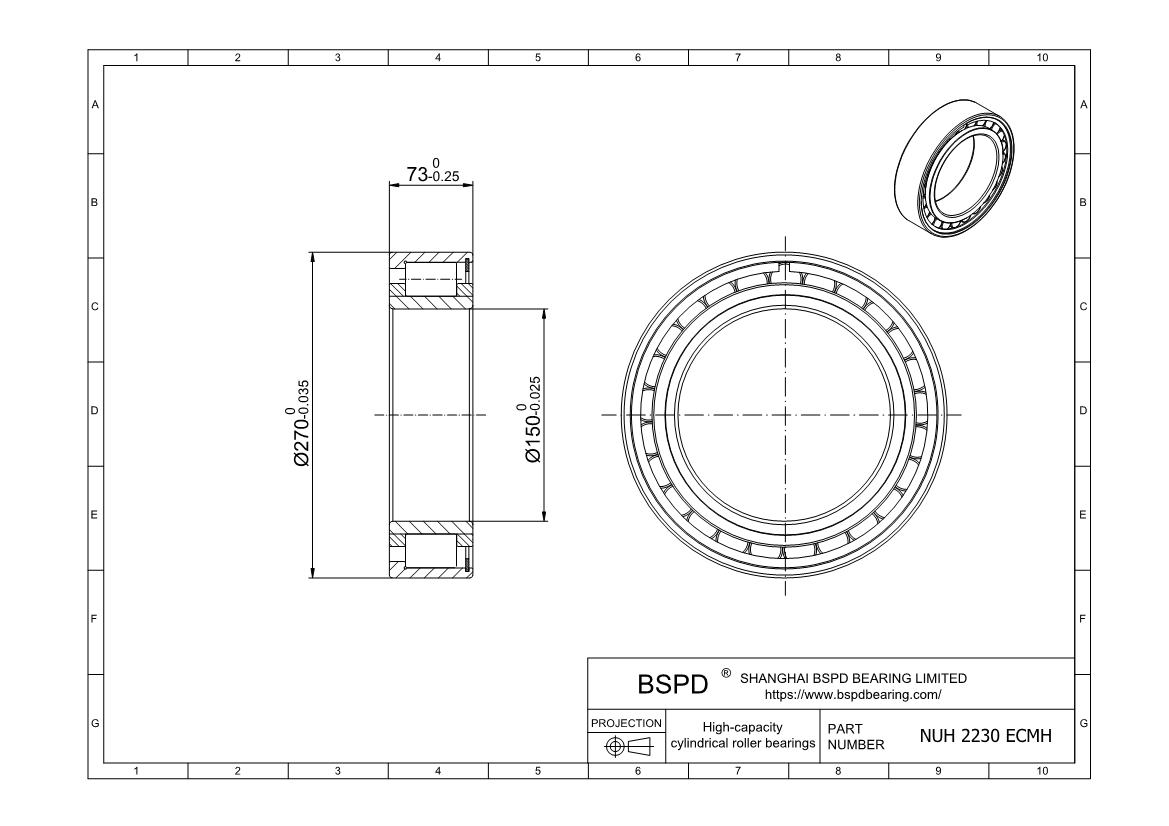

NUH 2230 ECMH
Single row full complement cylindrical roller bearings
Dimensions: Bore (Inner) Diameter: 150 mm； Outer Diameter: 270 mm； Width (Thickness): 73 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NUH 2230 ECMH |
| Bore diameter | 150 mm |
| Outside diameter | 270 mm |
| Width | 73 mm |
| Basic dynamic load rating | 780 kN |
| Basic static load rating | 1040 kN |
| Fatigue load limit | 112 kN |
| Reference speed | 2600 r/min |
| Limiting speed | 2800 r/min |
| Mass | 18 kg |
| Shoulder diameter of inner ring | – |
| Shoulder diameter of outer ring | 233 mm |
| Raceway diameter | 182 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NUH 2230 ECMH ? Single row full complement cylindrical roller bearings Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
