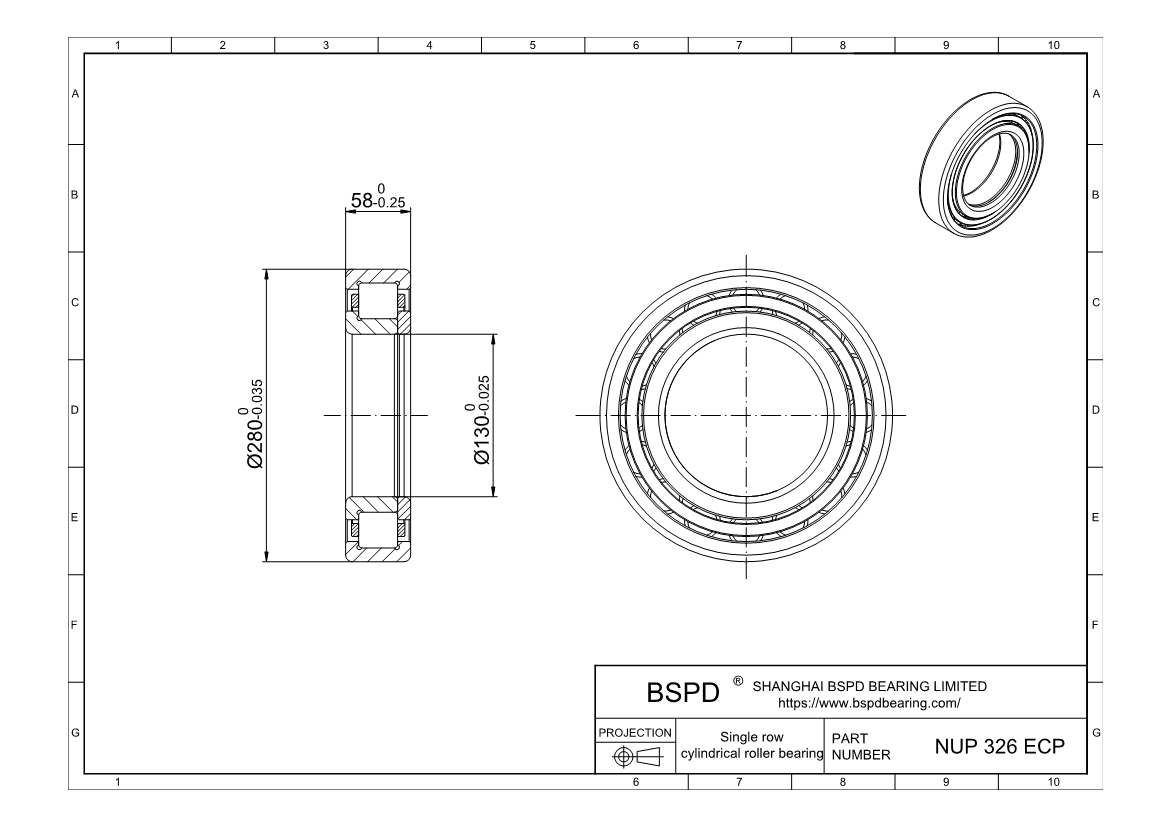

NUP 326 ECP
Single row cylindrical roller bearing
Dimensions: Bore (Inner) Diameter: 130 mm； Outer Diameter: 280 mm； Width (Thickness): 58 mm;
REQUEST FOR QUOTE
Product Attributes
| Product Number | NUP 326 ECP |
| Bore diameter | 130 mm |
| Outside diameter | 280 mm |
| Width | 58 mm |
| Basic dynamic load rating | 720 kN |
| Basic static load rating | 750 kN |
| Fatigue load limit | 81.5 kN |
| Reference speed | 2400 r/min |
| Limiting speed | 3000 r/min |
| Mass | 19.5 kg |
| Shoulder diameter of inner ring | 181 mm |
| Shoulder diameter of outer ring | 234.2 mm |
| Raceway diameter | 167 mm |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of cylindrical roller bearing NUP 326 ECP ? Single row cylindrical roller bearing Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
