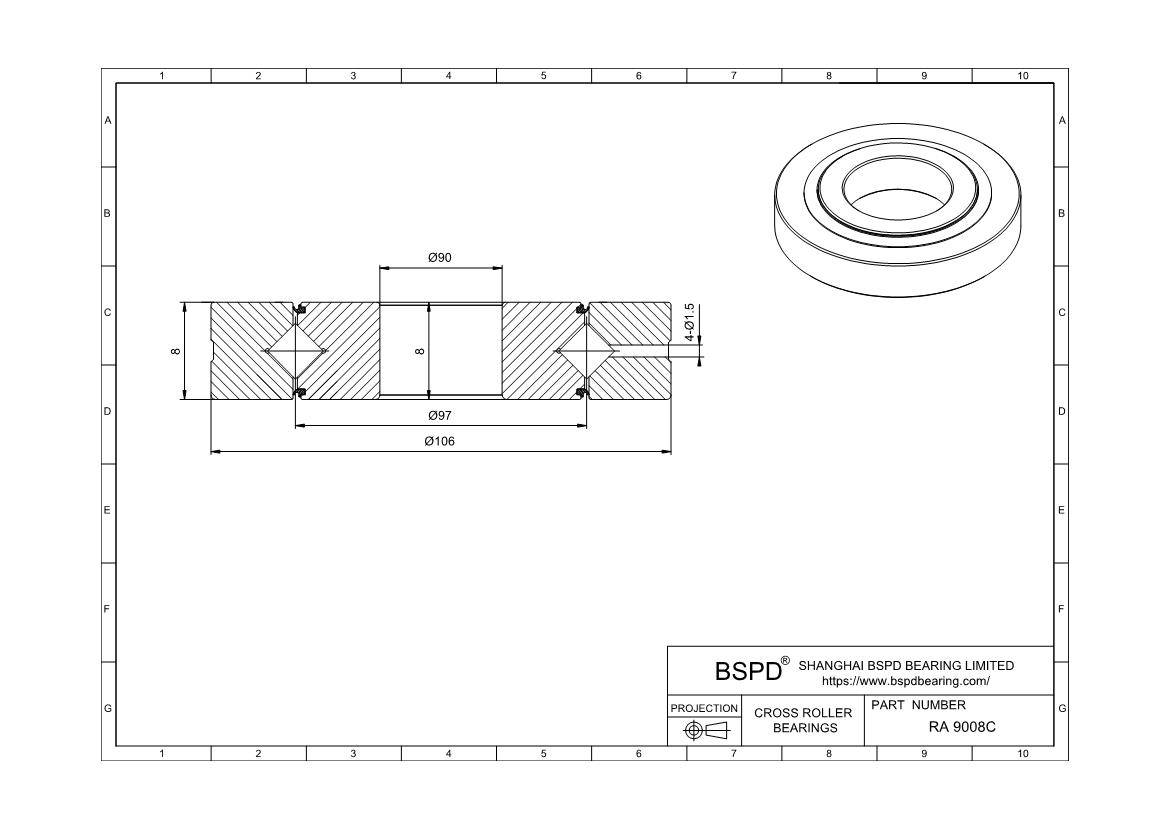

RA9008CUU
Crossed Roller TYPE
Dimensions: Bore (Inner) Diameter: 90 mm； Outer Diameter: 106 mm； Width (Thickness): 8 mm;
REQUEST FOR QUOTE
Crossed Roller Bearings of similar size
same inner diameter
same outer diameter
same width
Product Attributes
| Part Number | RA9008CUU |
| Bearing Type | Crossed Roller |
| Construction | Single Row |
| Seal Type | Sealed |
| ABEC Rating | ABEC-5 ABEC-7 ABEC-9 |
| Shaft dia. mm | 90 |
| Mass(kg) | 0.12 |
| Bore Dia (d) | 90 |
| Outer Dia (D) | 106 |
| Width (B) | 8 |
| Greasing hole(a) | |
| Greasing hole(b) | |
| r(min) | 0.5 |
| Shoulder height ds(max) | 93.5 |
| Shoulder height Dh(min) | 100.5 |
| Basic load rating (radial)C kN | 6.76 |
| Basic load rating (radial)Co kN | 12.4 |
Print PDF
Request a 3D CAD Model
if you need special bearings - design custom bearings
What are the types of Crossed Roller Bearings RA9008CUU ? Crossed Roller TYPE Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:NegotiationPrice:Negotiation
