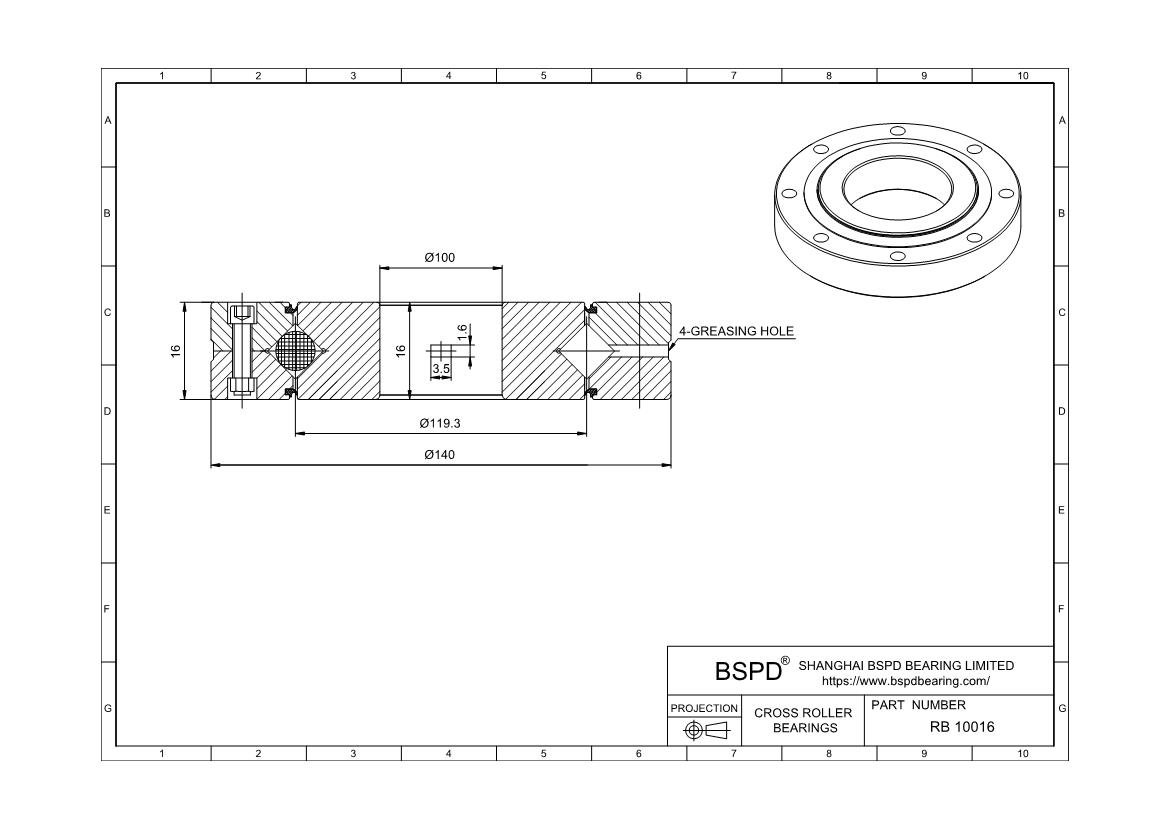

RB10016UU Crossed Roller TYPE
Dimensions: Bore (Inner) Diameter: 100 mm； Outer Diameter: 140 mm； Width (Thickness): 16 mm;

RB10016UU
REQUEST FOR QUOTE
* *
Send
Crossed Roller Bearings of similar size
same inner diameter
same outer diameter
same width
Product Attributes
THK Part Number RB10016UU
Bearing Type Roller
Roller Bearing Type Crossed
For Load Direction Combined Radial; Thrust; and Moment
Construction Single Row
Seal Type Sealed
Separator Full Complement
ABEC Rating ABEC-5 ABEC-7 ABEC-9
Ring Material Steel
Roller Material Steel
Shaft dia. mm 100
Mass(kg) 0.83
Bore Dia (d) 100
Outer Dia (D) 140
Width (B) 16
Greasing hole(d1)
r(min) 1
Shoulder height ds(max) 109
Shoulder height Dh(min) 129
Basic load rating (radial)C kN 31.7
Basic load rating (radial)Co kN 48.6
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range 0 -230
RB10016UU
