RB12016 Crossed Roller TYPE

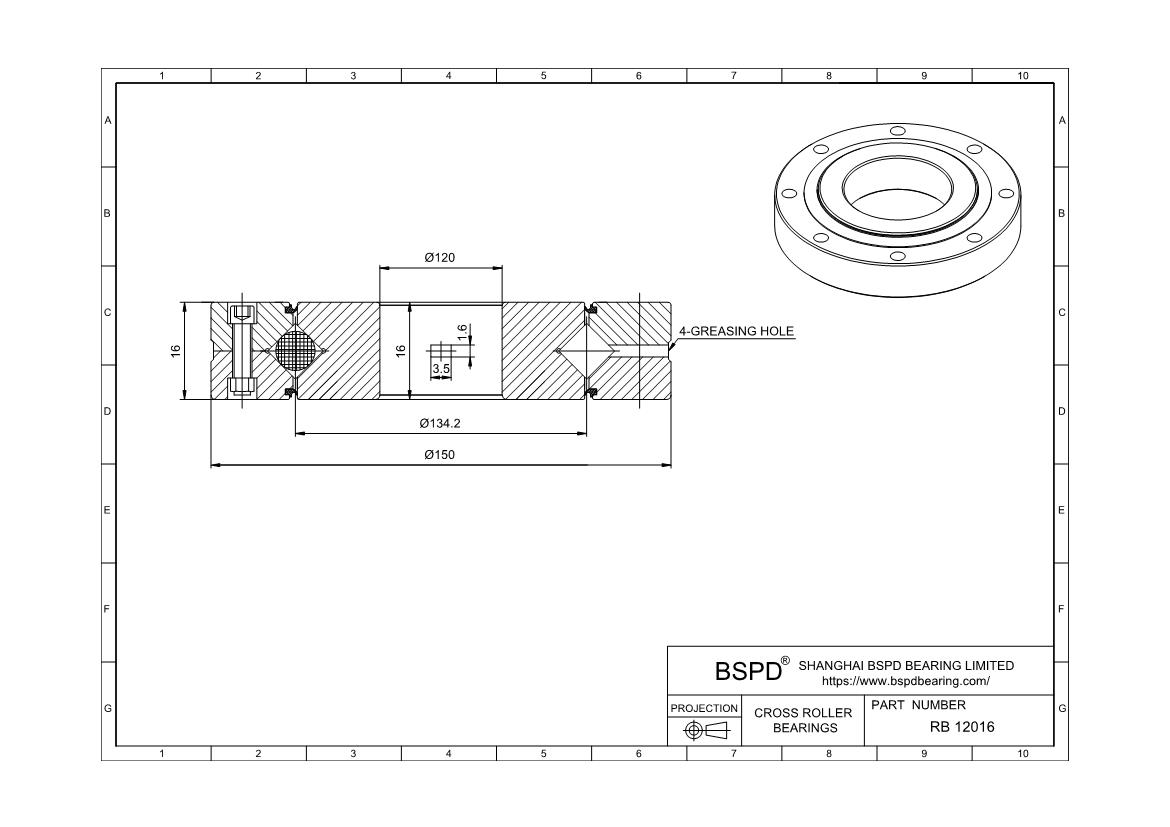

Dimensions: Bore (Inner) Diameter: 120 mm； Outer Diameter: 150 mm； Width (Thickness): 16 mm;

RB12016
REQUEST FOR QUOTE
* *
Send
Product Attributes
THK Part Number RB12016
Bearing Type Roller
Roller Bearing Type Crossed
For Load Direction Combined Radial; Thrust; and Moment
Construction Single Row
Seal Type Open
Separator Full Complement
ABEC Rating ABEC-5 ABEC-7 ABEC-9
Ring Material Steel
Roller Material Steel
Shaft dia. mm 120
Mass(kg) 0.72
Bore Dia (d) 120
Outer Dia (D) 150
Width (B) 16
Greasing hole(d1)
r(min) 0.6
Shoulder height ds(max) 127
Shoulder height Dh(min) 141
Basic load rating (radial)C kN 24.2
Basic load rating (radial)Co kN 43.2
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range 0 -230
RB12016
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of Crossed Roller Bearings RB12016 ? Crossed Roller TYPE Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation
