RB15013UU Crossed Roller TYPE

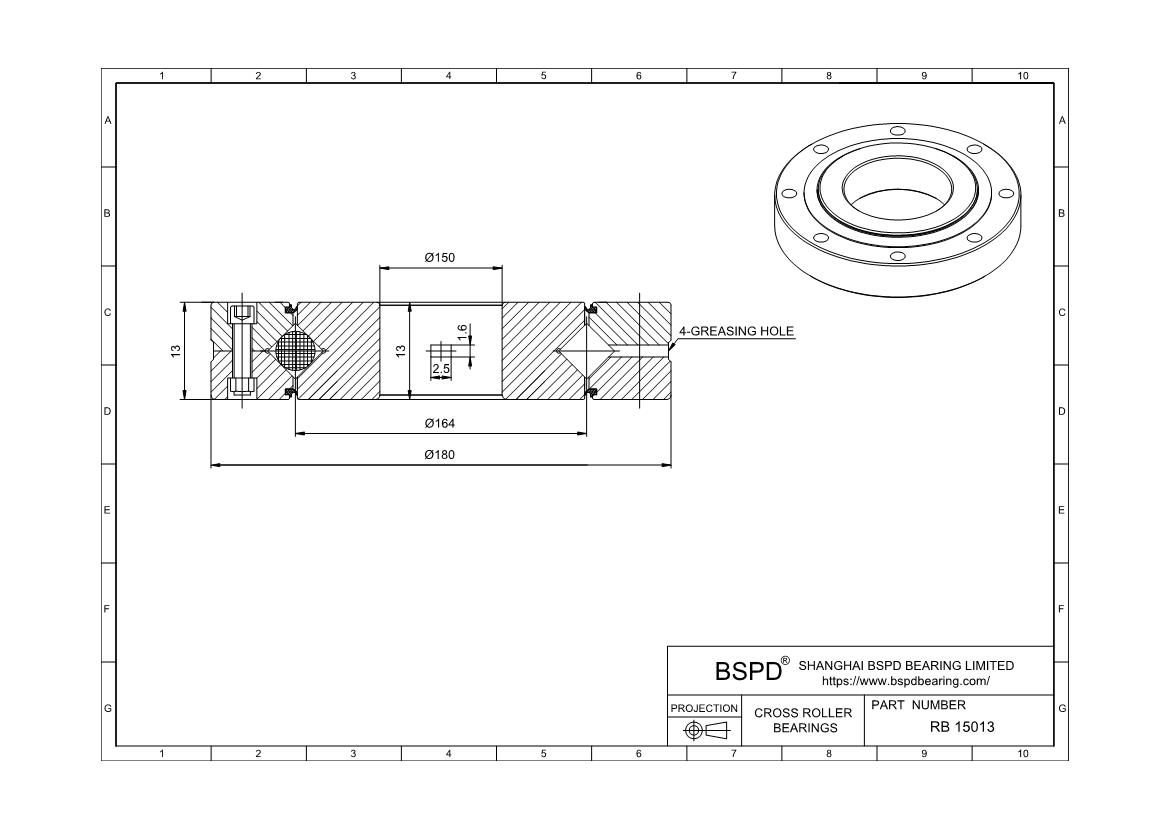

Dimensions: Bore (Inner) Diameter: 150 mm； Outer Diameter: 180 mm； Width (Thickness): 13 mm;

RB15013UU
REQUEST FOR QUOTE
* *
Send
Product Attributes
THK Part Number RB15013UU
Bearing Type Roller
Roller Bearing Type Crossed
For Load Direction Combined Radial; Thrust; and Moment
Construction Single Row
Seal Type Sealed
Separator Full Complement
ABEC Rating ABEC-5 ABEC-7 ABEC-9
Ring Material Steel
Roller Material Steel
Shaft dia. mm 150
Mass(kg) 0.68
Bore Dia (d) 150
Outer Dia (D) 180
Width (B) 13
Greasing hole(d1)
r(min) 0.6
Shoulder height ds(max) 157
Shoulder height Dh(min) 172
Basic load rating (radial)C kN 27
Basic load rating (radial)Co kN 53.5
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range 0 -230
RB15013UU
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
