RB19025 Crossed Roller TYPE

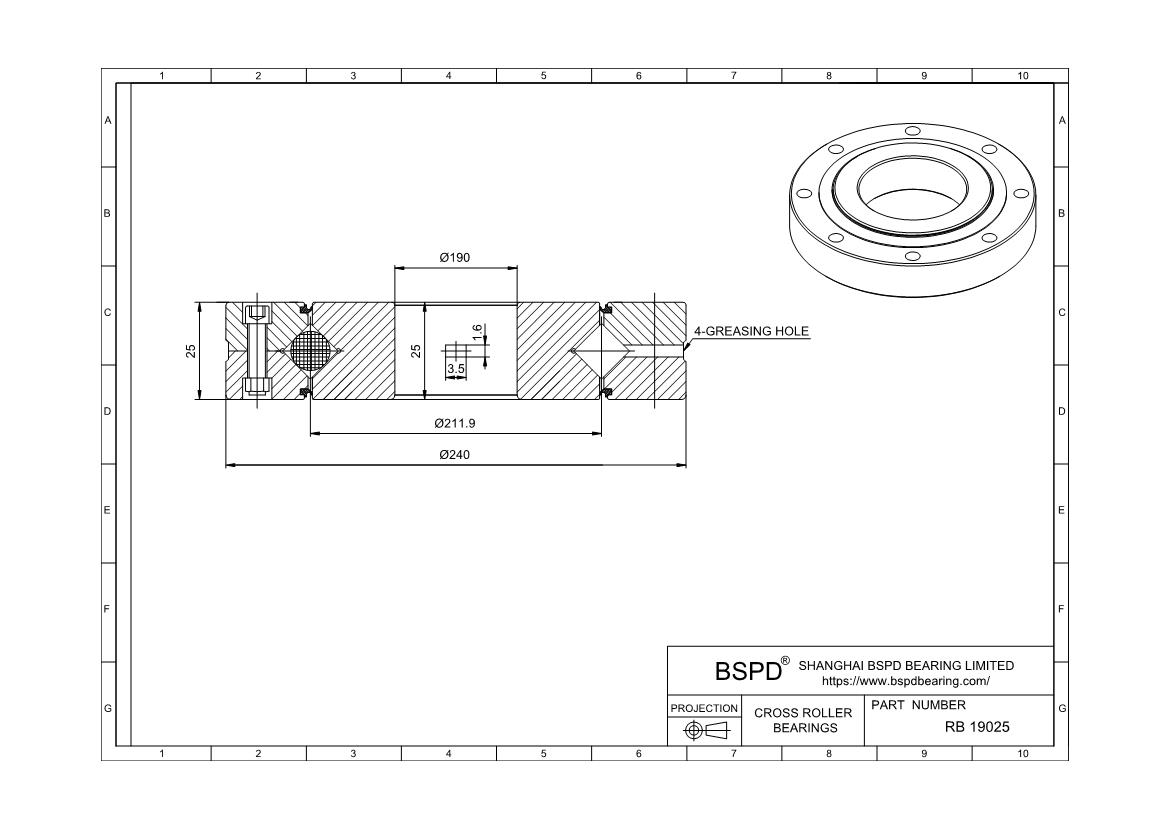

Dimensions: Bore (Inner) Diameter: 190 mm； Outer Diameter: 240 mm； Width (Thickness): 25 mm;

RB19025
REQUEST FOR QUOTE
* *
Send
Crossed Roller Bearings of similar size
same inner diameter
same outer diameter
same width
Product Attributes
THK Part Number RB19025
Bearing Type Roller
Roller Bearing Type Crossed
For Load Direction Combined Radial; Thrust; and Moment
Construction Single Row
Seal Type Open
Separator Full Complement
ABEC Rating ABEC-5 ABEC-7 ABEC-9
Ring Material Steel
Roller Material Steel
Shaft dia. mm 190
Mass(kg) 2.99
Bore Dia (d) 190
Outer Dia (D) 240
Width (B) 25
Greasing hole(d1)
r(min) 1
Shoulder height ds(max) 202
Shoulder height Dh(min) 222
Basic load rating (radial)C kN 41.7
Basic load rating (radial)Co kN 82.9
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range 0 -230
RB19025
Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
What are the types of Crossed Roller Bearings RB19025 ? Crossed Roller TYPE Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation
  • Fast Delivery     √
  • Best Quality       √
  • Good Price        √
