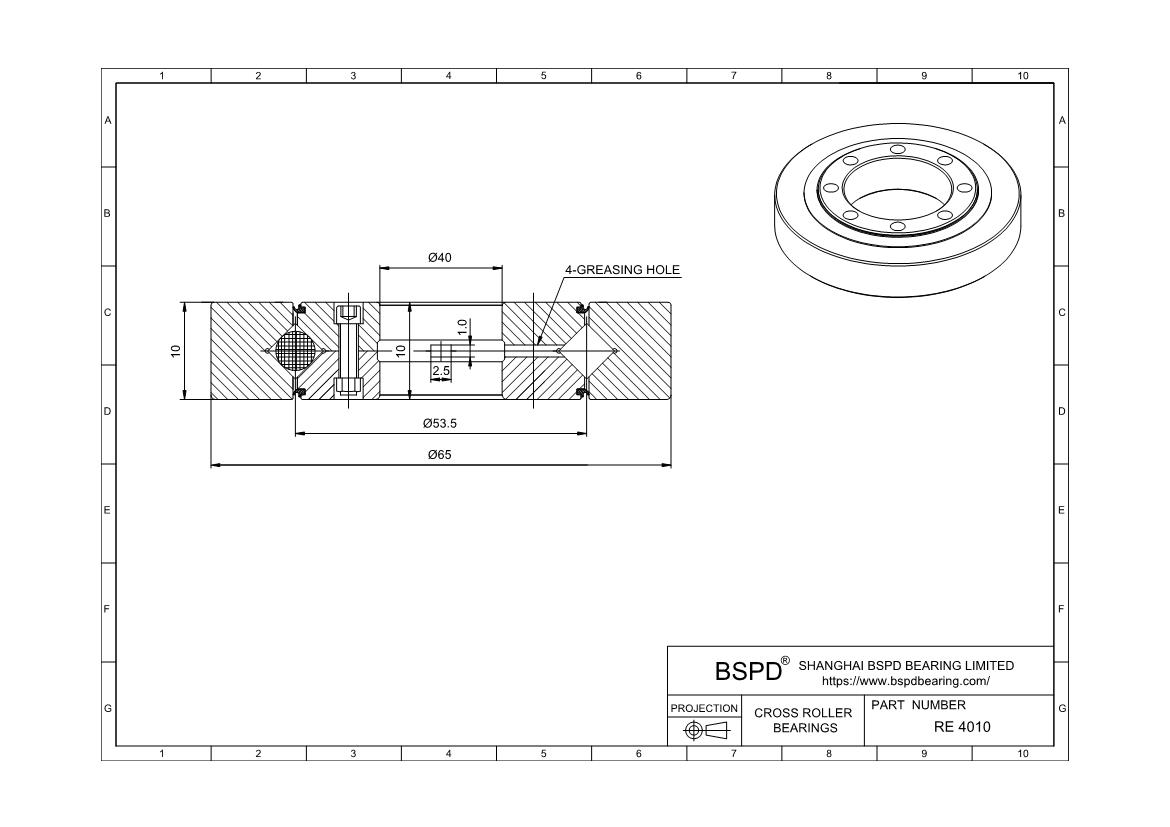

RE4010UU Crossed Roller TYPE
Dimensions: Bore (Inner) Diameter: 40 mm； Outer Diameter: 65 mm； Width (Thickness): 10 mm;

REQUEST FOR QUOTE

Product Attributes

Part Number	RE4010UU
Bearing Type	Crossed Roller
Construction	Single Row
Seal Type	Sealed
ABEC Rating	ABEC-5 ABEC-7 ABEC-9
Shaft dia. mm	40
Mass(kg)	0.16
Bore Dia (d)	40
Outer Dia (D)	65
Width (B)	10
Greasing hole(a)	2.5
Greasing hole(b)	1
r(min)	0.6
Shoulder height ds(max)	47.5
Shoulder height Dh(min)	58.5
Basic load rating (radial)C kN	8.33
Basic load rating (radial)Co kN	10.6

Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings

What are the types of Crossed Roller Bearings RE4010UU ? Crossed Roller TYPE Manufacturing Service . Get Your Free, Instant price, design review, stock and delivery time.
Min.Order Quantity:Negotiation
Price:Negotiation

Fast Delivery √
Best Quality √
Good Price √
