RE6013UU Crossed Roller TYPE

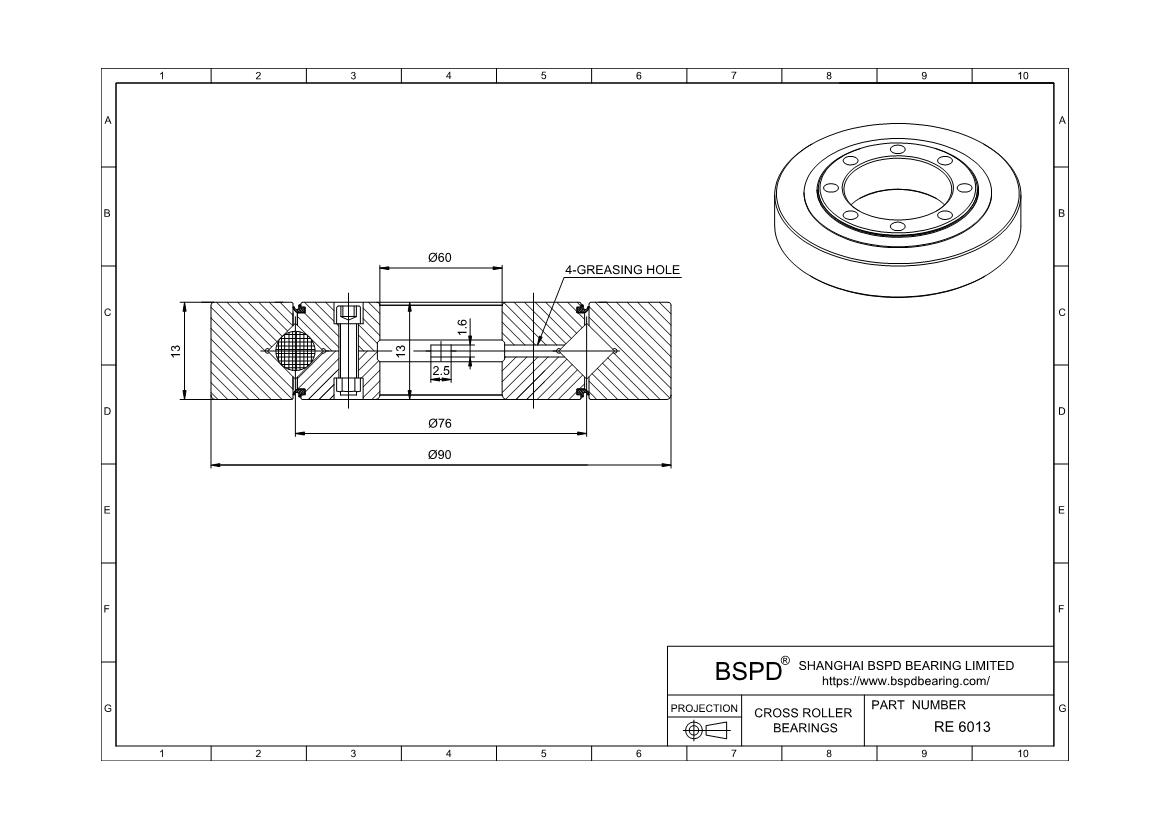

Dimensions: Bore (Inner) Diameter: 60 mm； Outer Diameter: 90 mm； Width (Thickness): 13 mm;

REQUEST FOR QUOTE

Product Attributes

Part Number	RE6013UU
Bearing Type	Crossed Roller
Construction	Single Row
Seal Type	Sealed
ABEC Rating	ABEC-5 ABEC-7 ABEC-9
Shaft dia. mm	60
Mass(kg)	0.3
Bore Dia (d)	60
Outer Dia (D)	90
Width (B)	13
Greasing hole(a)	2.5
Greasing hole(b)	1.6
r(min)	0.6
Shoulder height ds(max)	68
Shoulder height Dh(min)	83
Basic load rating (radial)C kN	18
Basic load rating (radial)Co kN	24.3

Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
