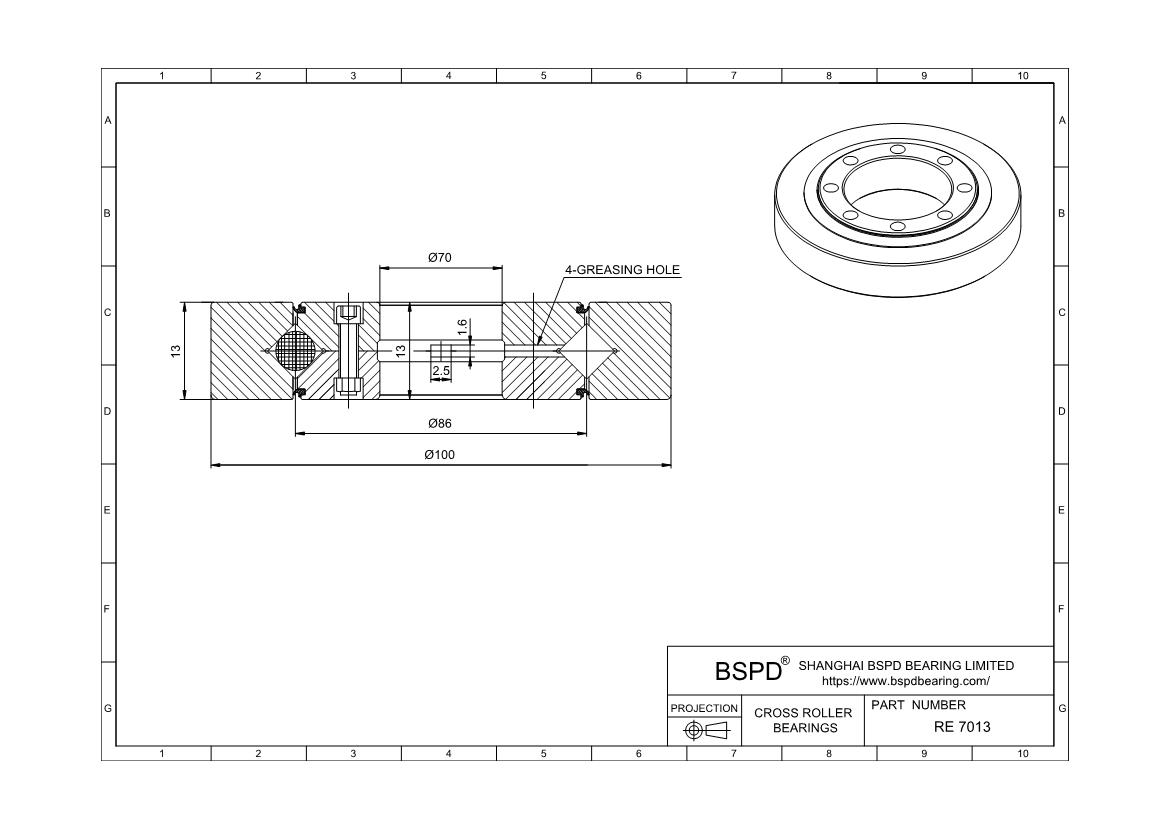

RE7013 Crossed Roller TYPE
Dimensions: Bore (Inner) Diameter: 70 mm； Outer Diameter: 100 mm； Width (Thickness): 13 mm;

REQUEST FOR QUOTE

Product Attributes

Part Number	RE7013
Bearing Type	Crossed Roller
Construction	Single Row
Seal Type	Open
ABEC Rating	ABEC-5 ABEC-7 ABEC-9
Shaft dia. mm	70
Mass(kg)	0.35
Bore Dia (d)	70
Outer Dia (D)	100
Width (B)	13
Greasing hole(a)	2.5
Greasing hole(b)	1.6
r(min)	0.6
Shoulder height ds(max)	78
Shoulder height Dh(min)	93
Basic load rating (radial)C kN	19.4
Basic load rating (radial)Co kN	27.7

Print PDF
Request a 3D CAD Model if you need special bearings - design custom bearings
